FyreBox™

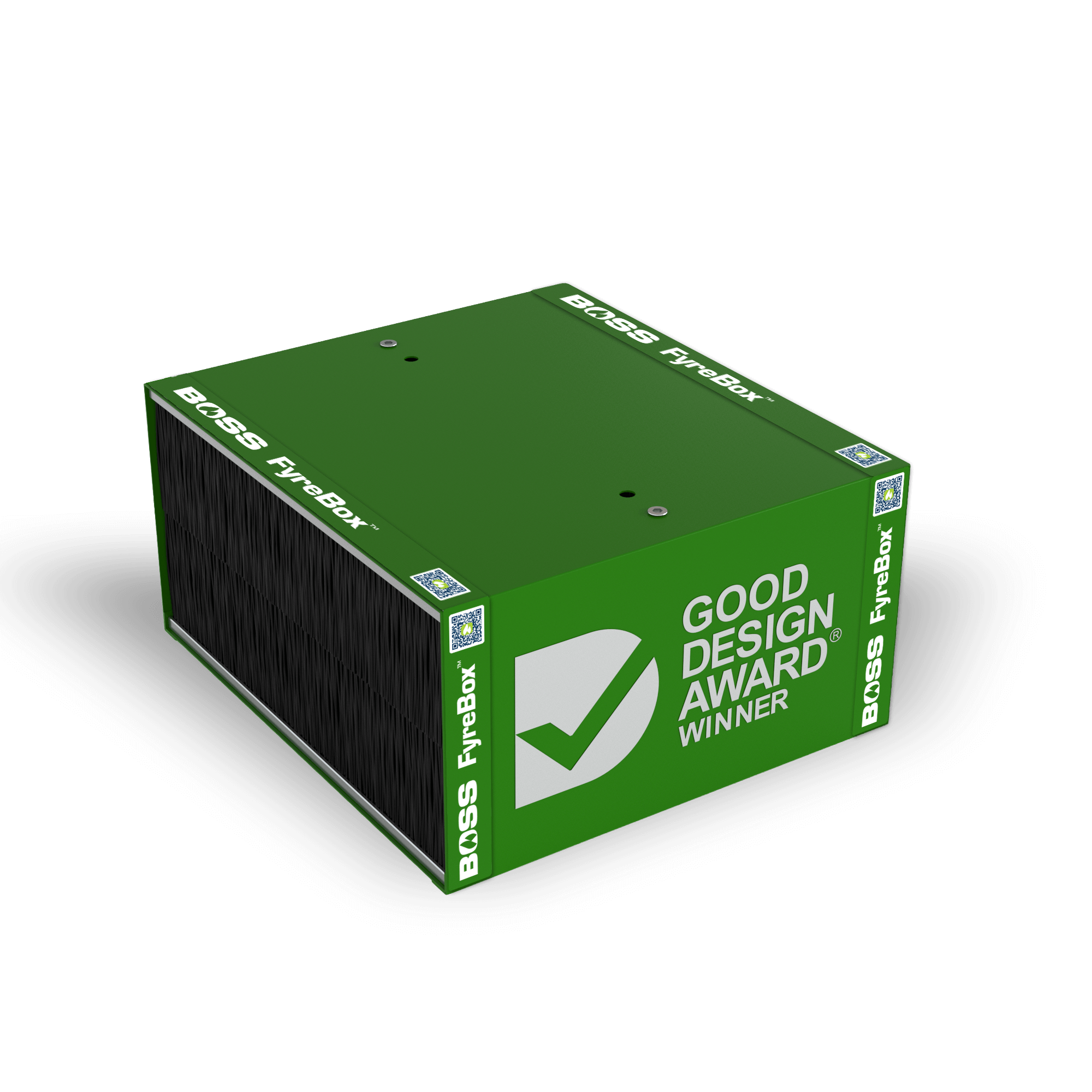

BOSS FyreBox™ is a multi-service fire-rated cable and pipe transit system engineered to simplify and accelerate the firestopping of large mixed-service penetrations. It allows multiple electrical, plumbing and HVAC services to pass through a single compact fire-rated enclosure, dramatically reducing installation time while maintaining full compliance across fire-rated walls, concrete slabs and ceiling/floor systems.
Designed with installers in mind, FyreBox™ includes a unique BrushSeal™ system that enables new services to be added post installation without the need to break the fire seal. Providing fire resistance ratings up to FRL -/240/240 (integrity/insulation), it delivers one of the industry’s most versatile, certified and cost-efficient passive fire solutions for high-density buildings such as apartments, student accommodation, aged care and hotels.
| Standard Range | BFB-150: 150mm W x 150mm H x 270mm D |
|---|---|
| Slimline & Junior | BFB-JR: 200mm W x 110mm H x 150mm D |
| Extra Depth Range | BFB-150-XD: 150mm W x 150mm H x 450mm D |
Applications
- Apartment entry service penetrations
- Service risers, shafts & plant rooms
- Services cupboards & SOU wall transitions

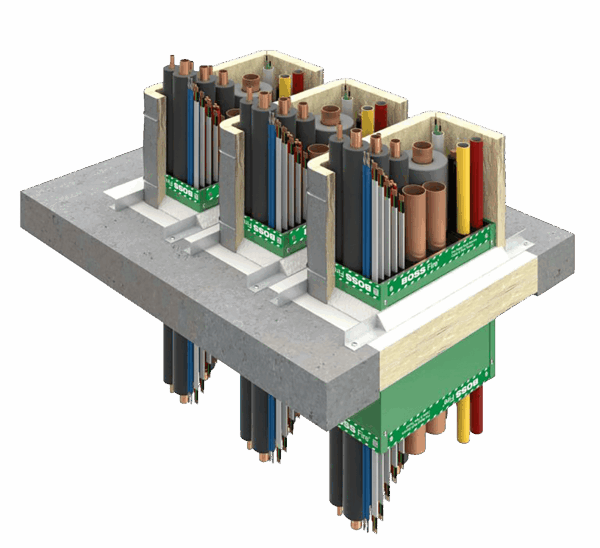

- Retrofit concrete floor slab penetrations

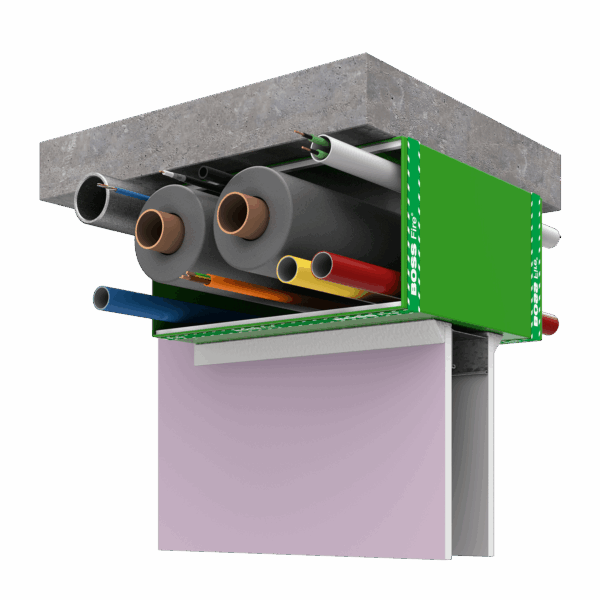

- Ceiling/floor fire-rated systems
- Large bundled service runs including:
- Power & sub-mains cables
- Data/communications cabling
- A/C paircoil copper pipes
- PEX/PEX-AL water & gas services
- Steel sprinkler pipes
- uPVC/cPVC pipes & conduits
- Insulated & un-insulated copper pipes
Key Benefits
- Fire ratings 30, 60, 90, 120, 180 & 240 minutes
- Up to Rw50 acoustic isolation
- Eliminates compliance risks
- Seismic Tested
- Airtight Smoke Seals available
- Approved for walls, slabs & ceiling systems
- Pass mixed services through one firestop
- AS1530.4:2014 & AS4072.1-2005 certified
- Lowers installation cost by up to 90%
- Future-proof — easily add/remove services
- Easy AS1851 inspections & maintenance
- Large variety of service types & bundles approved
Testing

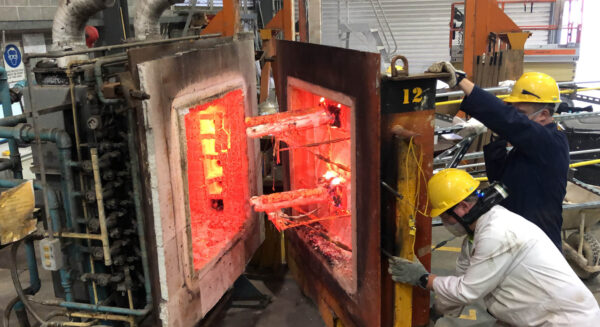

The BOSS FyreBox™ is fully tested and approved to AS1530.4:2014 and AS4072.1-2005, delivering up to FRL -/240/240 relevant to the type of services, wall/floor substrate and installation configuration. Approved performance includes mixed services such as electrical cables, sprinkler pipes, PEX/PEX-AL water and gas pipes, and an extensive array of insulated copper pipes and paircoil through a single enclosure. Extensive testing has enabled the product to have the widest range of approved substrates on the market for a firestopping system offering endless versatility.
