BF-2305-2

Specimen Size & Details

TypeBlank Seal ElementWall SubstrateDouble LayerFire Rated Plasterboard Substrate Thickness100mm FRL / FRR-/120/120 Fire Stopping ProductsBOSS Batts™Ablative Coating™FireMastic-300™

Gap Width1100 Gap Length1100

Specimen Size & Details

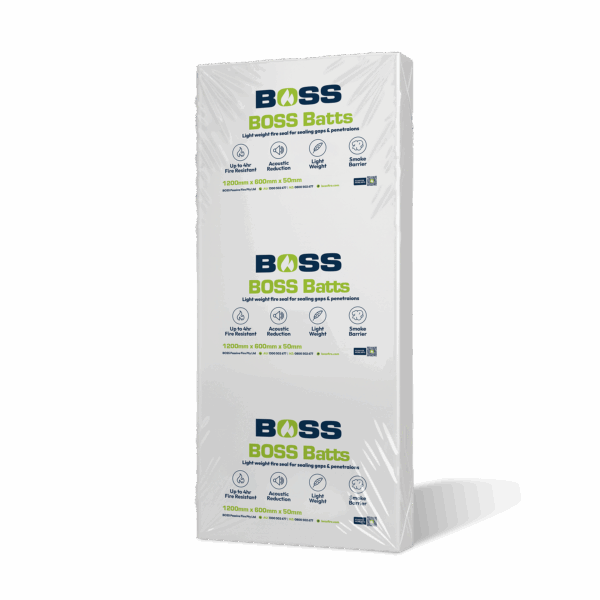

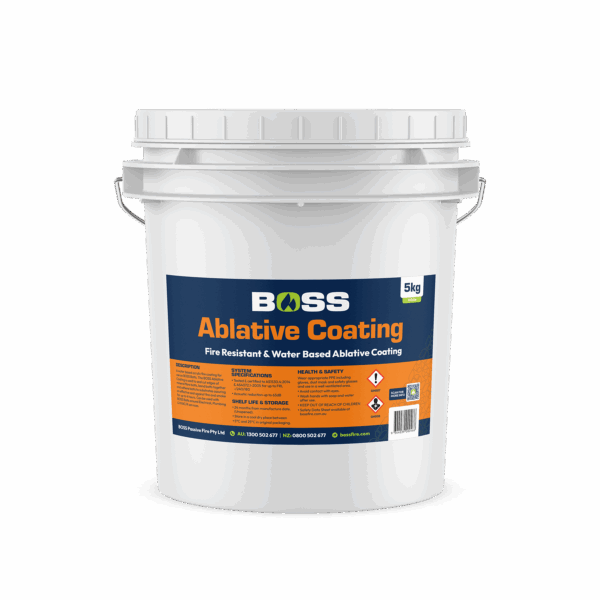

Specimen Size & Details100 mm thick double layer of BOSS Batt™ friction fitted into an aperture up to 1100 mm x 1100 mm in size, coated with 1 mm DFT BOSS Ablative Coating™. A bead of sealant is applied to the edges of the batt and the separating element to both sides.

Reference Reporthttp://FAR%204572
