BF-2059-17
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- AAC / Hebel (w/Buildup)
- Minimum Substrate Thickness
- 130 mm
- FRL / FRR
- -/90/90
- Trade
- Electrical
- Service
- Conduit Incl. Cables
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Aperture
- 70 mm
- Sealant Depth
- 20 mm
- Sealant Fillet
- 0 mm
Specimen size & details

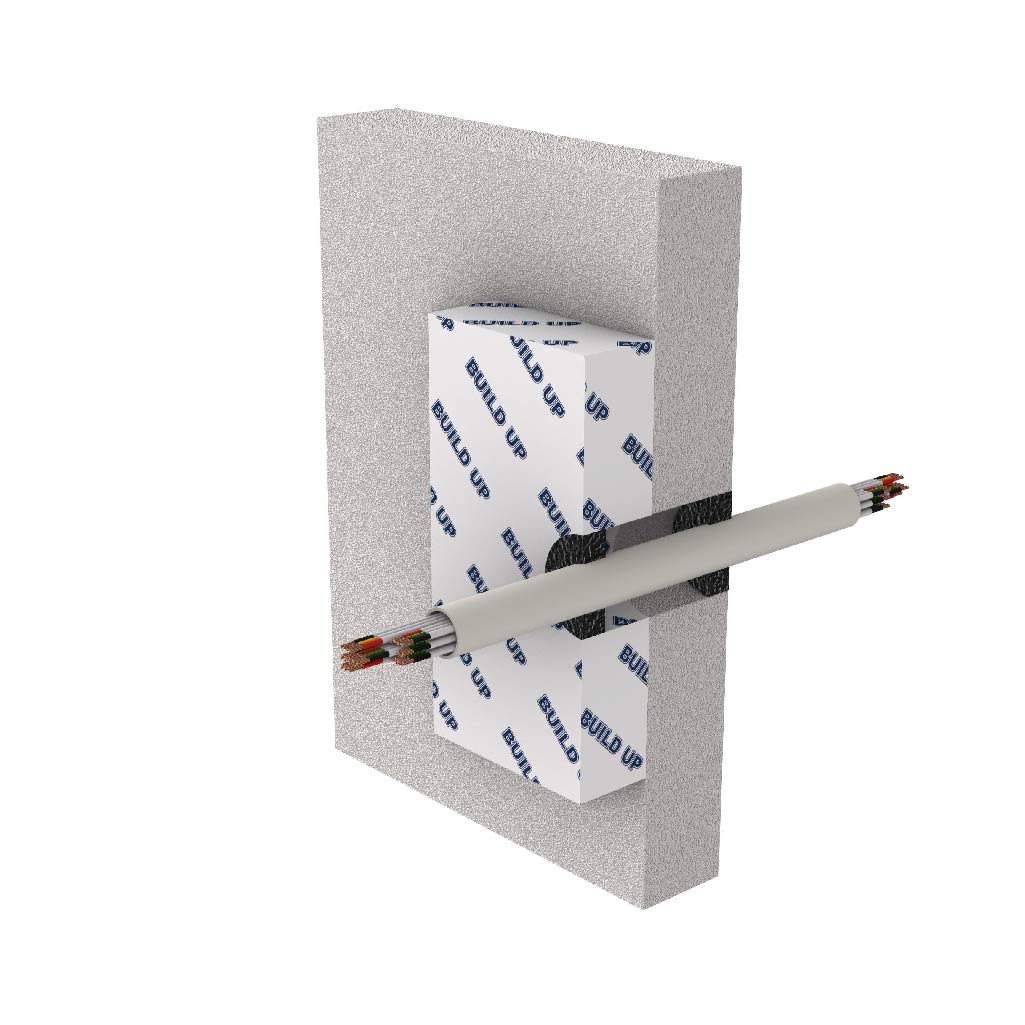

6 x 2.5 mm² 2C+E TPS Power Cables installed inside a 32mm uPVC Conduit (WT 1.9 mm).
Sealant to depth of 20 mm in annular gap both sides, finished flush.
