BF-2085-25
System details
- Type
- Service Penetration
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 125 mm
- FRL / FRR
- -/120/90
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Insulated Copper Pipe
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 100 mm
- Service Diameter Range
- Up to 100 mm
- Annular Gap
- 10 mm
- Sealant Depth
- 16 mm
- Sealant Fillet
- 10 mm
Specimen size & details

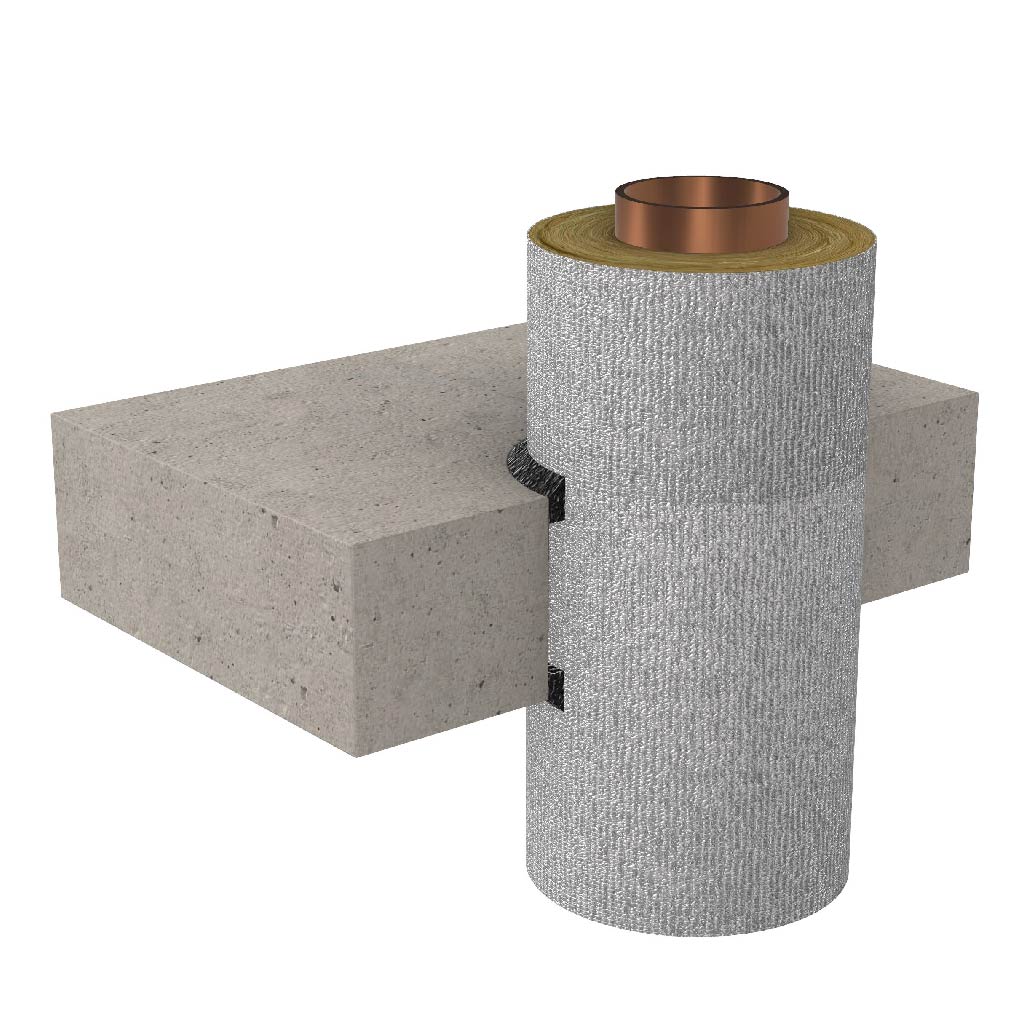

Up to 100 mm copper pipe with 50 mm thick stonewool insulation. Sealant 16 mm deep in annular gap with a 10 mm x 10 mm fillet both sides. Insulation wrapping is extended 600 mm on both sides.
