BF-2086-25
System details
- Type
- Service Penetration
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 125 mm
- FRL / FRR
- -/60/30
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Insulated Copper Pipe
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Min Diameter
- 100 mm
- Max Diameter
- 200 mm
- Service Diameter Range
- 100-200 mm
- Annular Gap
- 20 mm
- Sealant Depth
- 25 mm
- Sealant Fillet
- 0 mm
Specimen size & details

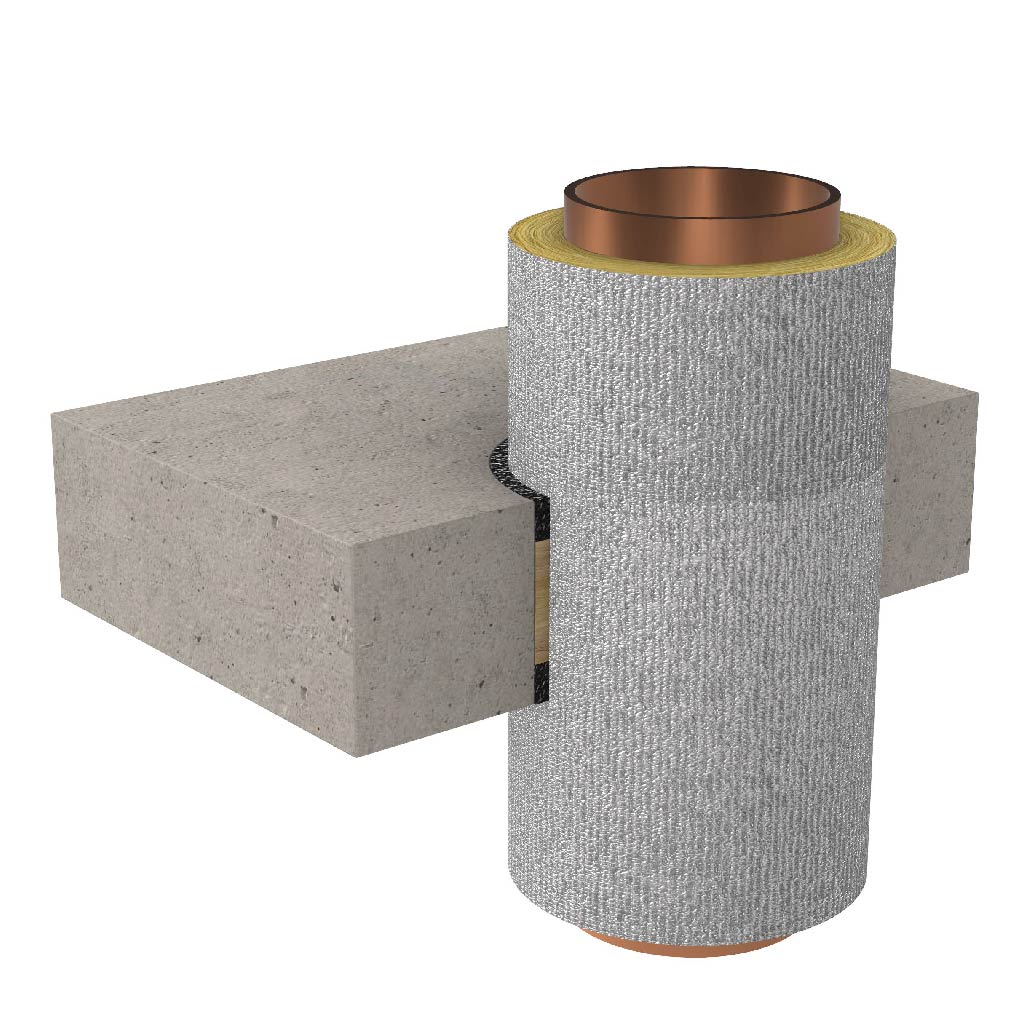

100 mm - 200 mm copper pipe with 32 mm thick glasswool insulation. Sealant 25 mm deep in annular gap both sides, backed with stonewool insulation. Insulation wrapping is extended 600 mm on both sides.
