BF-2144-2
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Double Layer
- Minimum Substrate Thickness
- 156 mm
- FRL / FRR
- -/120/120
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 43 mm
- Max Diameter
- 43 mm
- Aperture
- 90 mm
- Annular Gap
- 23.5 mm
- Sealant Depth
- 26 mm
- Sealant Fillet
- 0 mm
Specimen size & details

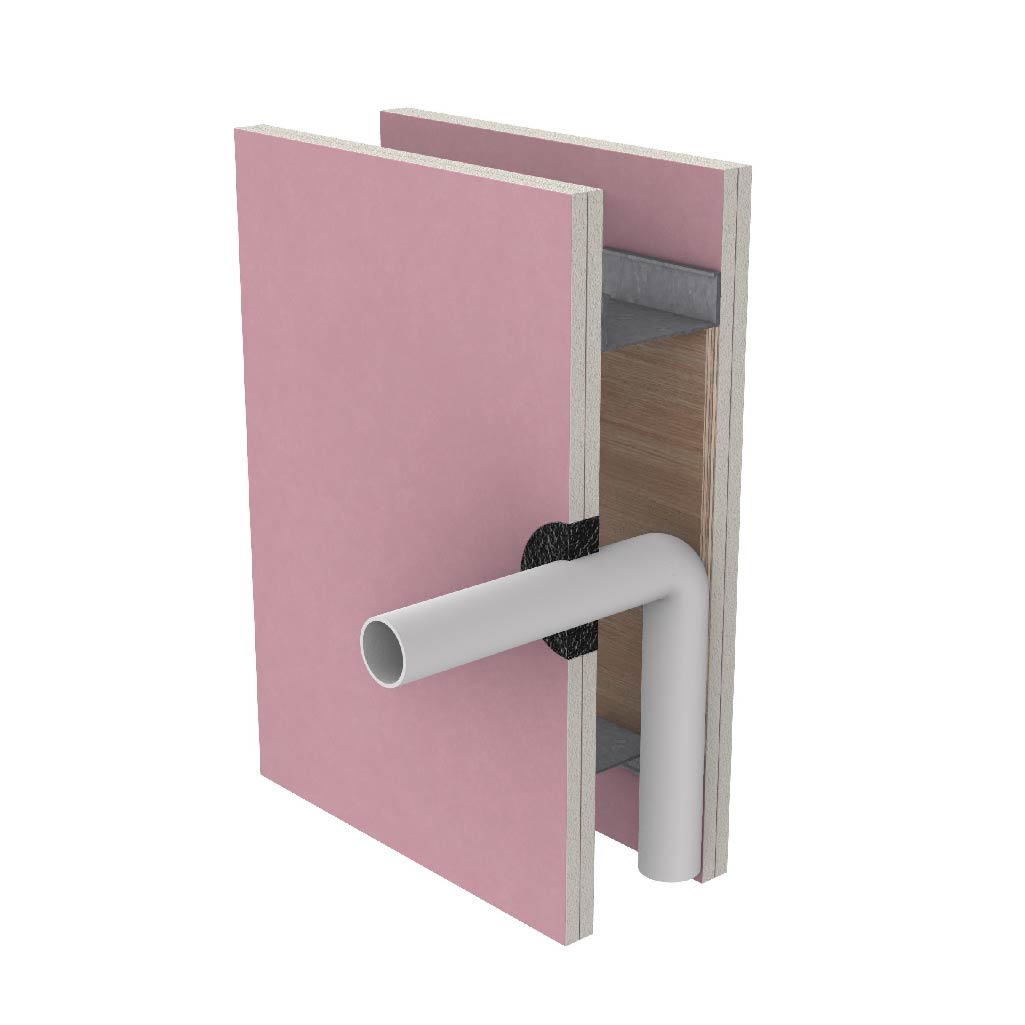

1-sided installation. System is approved for installation in both directions.
43 mm PVC pipe. Sealant to depth of plasterboard in annular gap finished flush.
