BF-2158-14
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- BOSS Batt Dbl – Pattress
- Minimum Substrate Thickness
- 75 mm
- FRL / FRR
- -/120/120
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- CPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 32 mm
- Service Diameter Range
- Up to 32 mm
- Aperture
- 83 mm
- Annular Gap
- 25.5 mm
- Sealant Depth
- 20 mm
- Sealant Fillet
- 15 mm

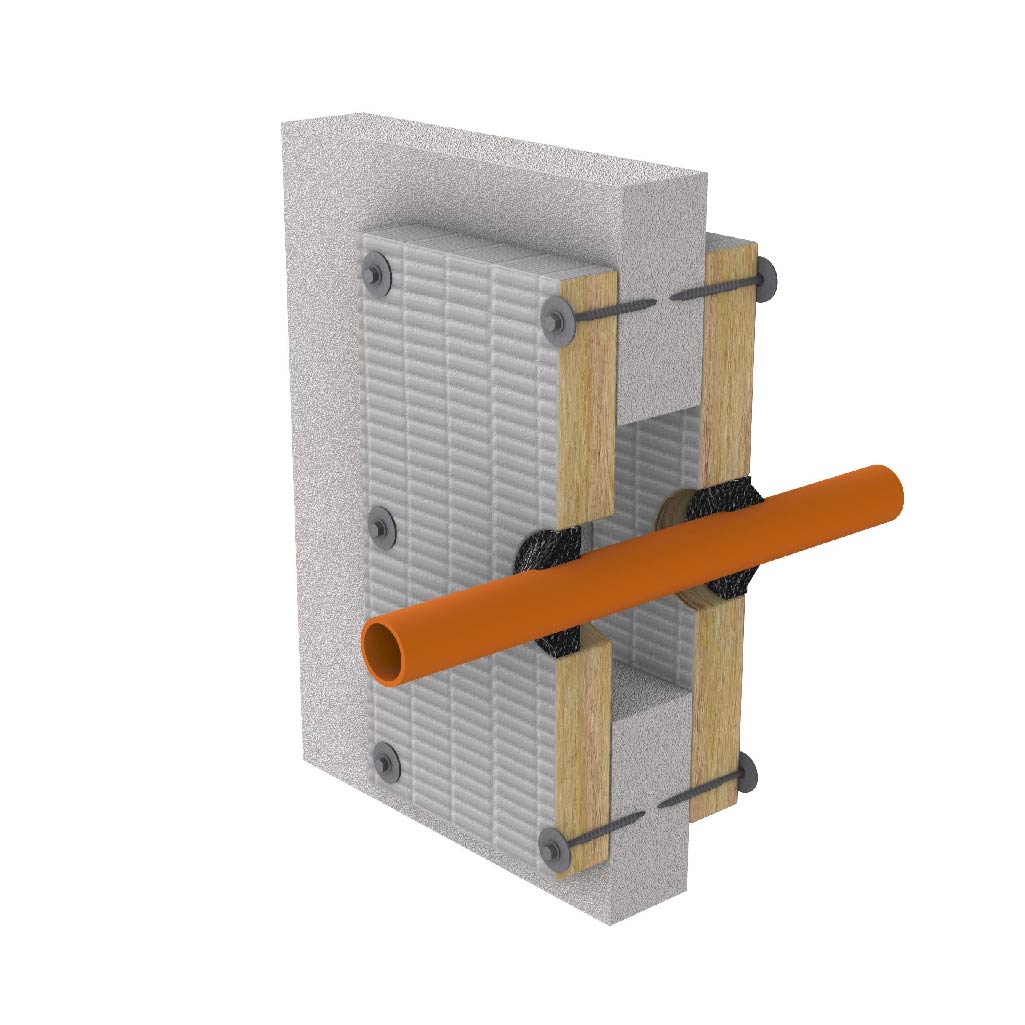

Specimen size & details
cPVC 32 mm (OD42 mm) pipe. Sealant 20 mm depth in annular and a 15 mm x 15 mm fillet both sides.
