BF-2167-5
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Masonry
- Minimum Substrate Thickness
- 130 mm
- FRL / FRR
- -/90/90
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Kelox / Kekilit
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 50 mm
- Service Diameter Range
- Up to 25 mm
- Aperture
- 83 mm
- Annular Gap
- 16.5 mm
- Sealant Depth
- 20 mm
- Sealant Fillet
- 0 mm
Specimen size & details

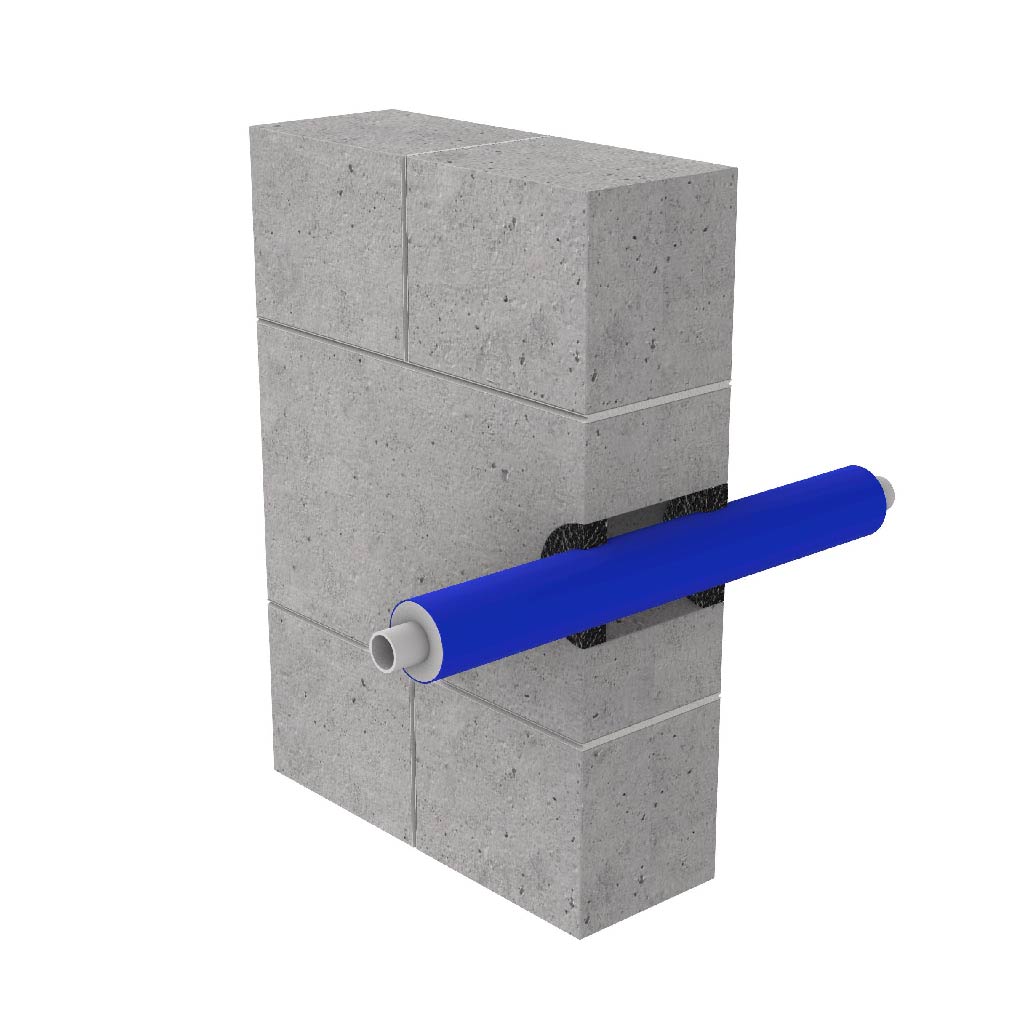

Up to 50 mm OD - Up to 25 mm Kelox plus pipe with 13 mm thick insulation. Sealant to depth of 20 mm in annular gap both sides, finished flush.
