FireStrip-ALX™

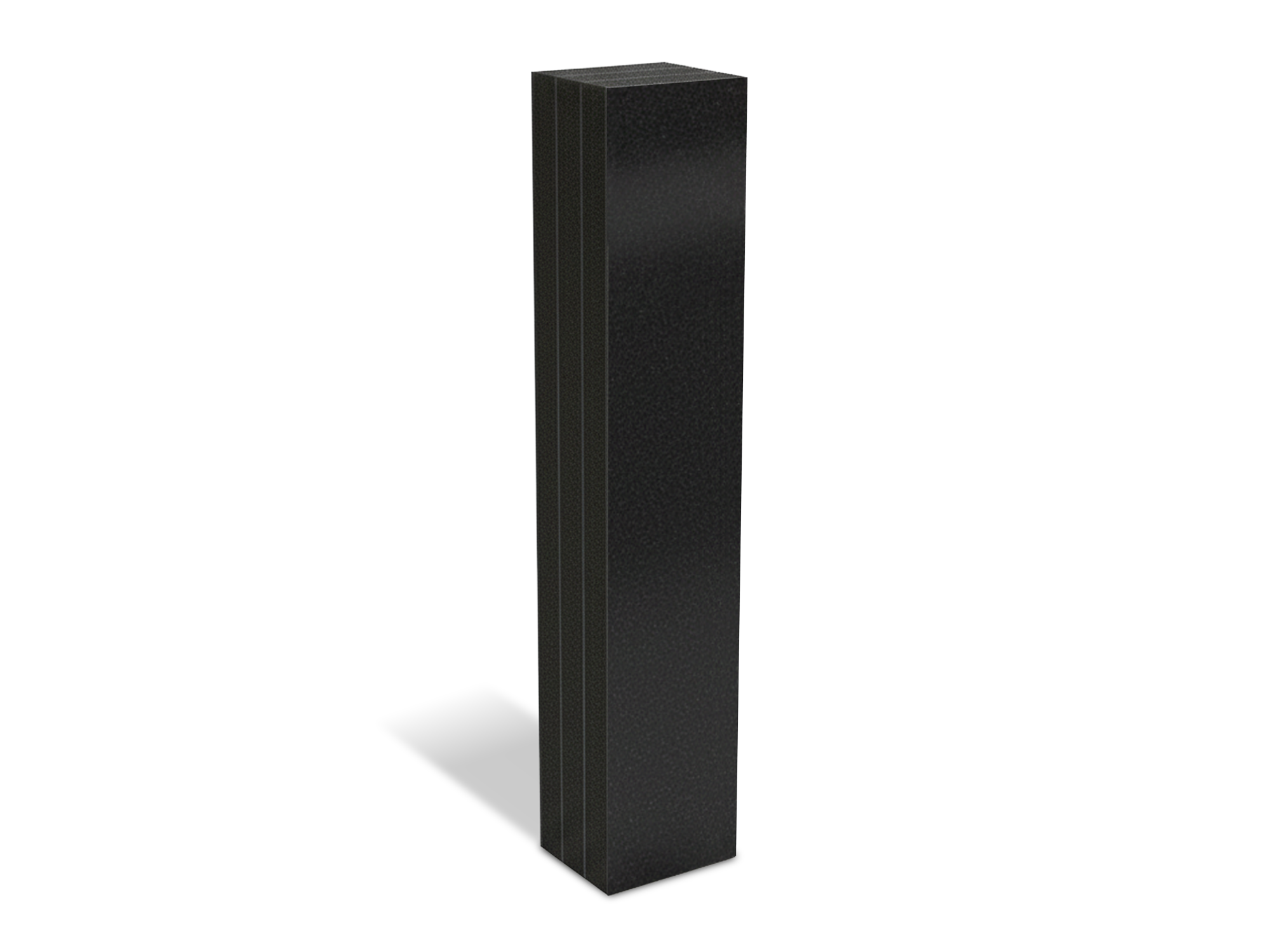

FireStrip-ALX™ is a high-performance elastomeric intumescent fire barrier designed for linear gap seals in both horizontal and vertical fire-rated joints. Constructed from a flexible acoustic foam laminated on both sides with a graphite-based intumescent material, FireStrip-ALX™ expands rapidly under heat to seal movement gaps and prevent the spread of fire, smoke and hot gases through compartment boundaries. It is suitable for use between rigid structural elements such as concrete, blockwork and fire-rated walls and floors, providing reliable firestopping where movement is expected.
Engineered for fast, simple installation, FireStrip-ALX™ is installed by friction-fitting into voids without the need for mechanical fixings or adhesives. It provides fire resistance up to FRL -/120/120 and has testing for linear joints up to 150mm wide, offering a practical and installer-friendly solution that requires minimal preparation.

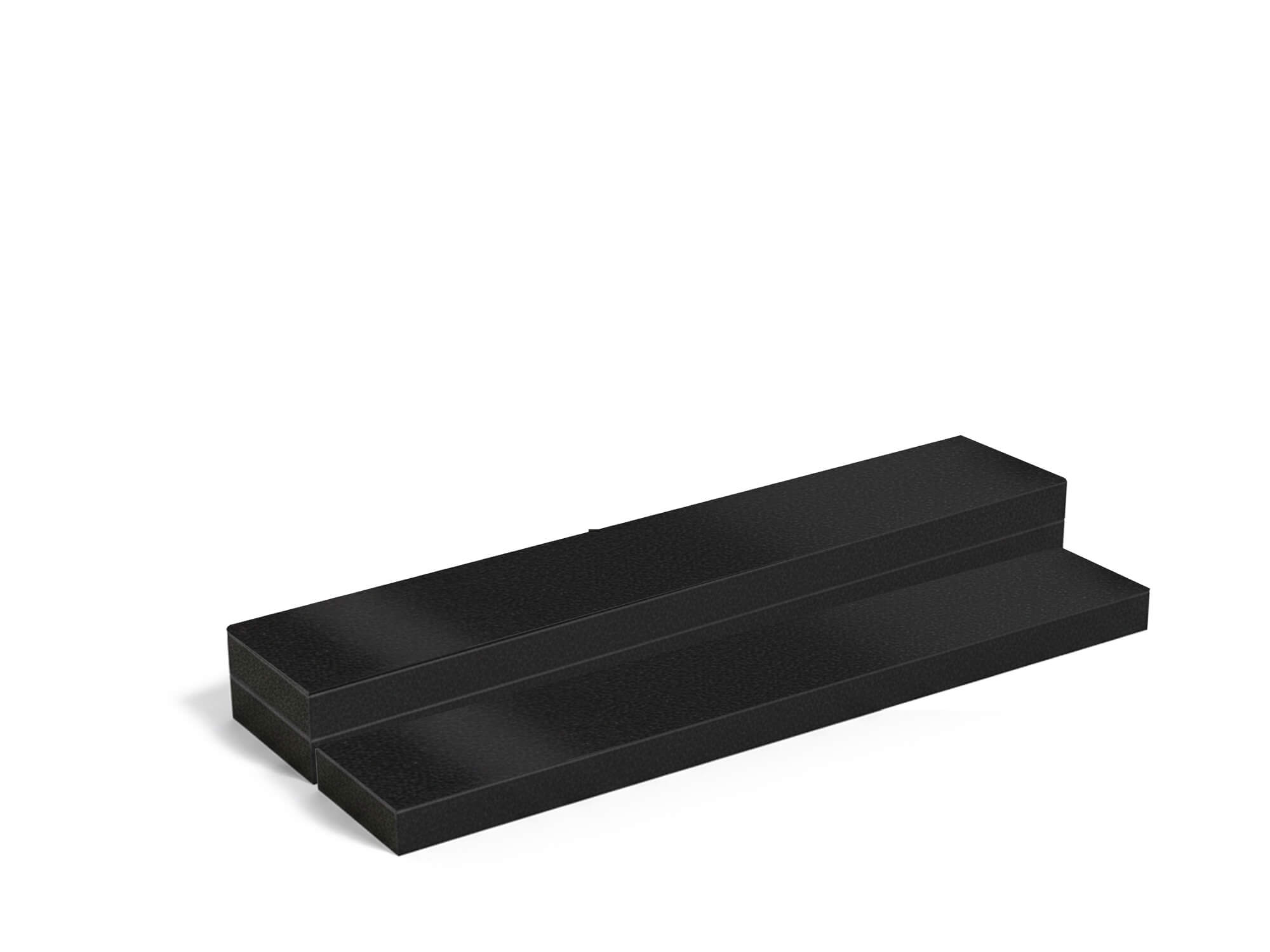

| Part ID & Nominal Dimensions: | ALX-10 – 12mm x 12mm x 1m |
|---|---|
| Size : | 1m long for 10mm gap |
Applications

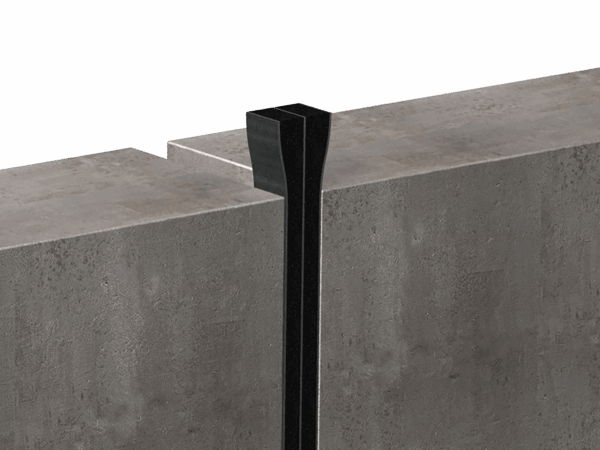

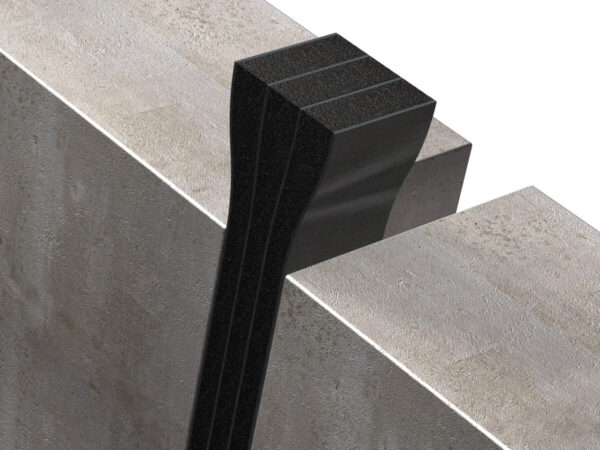

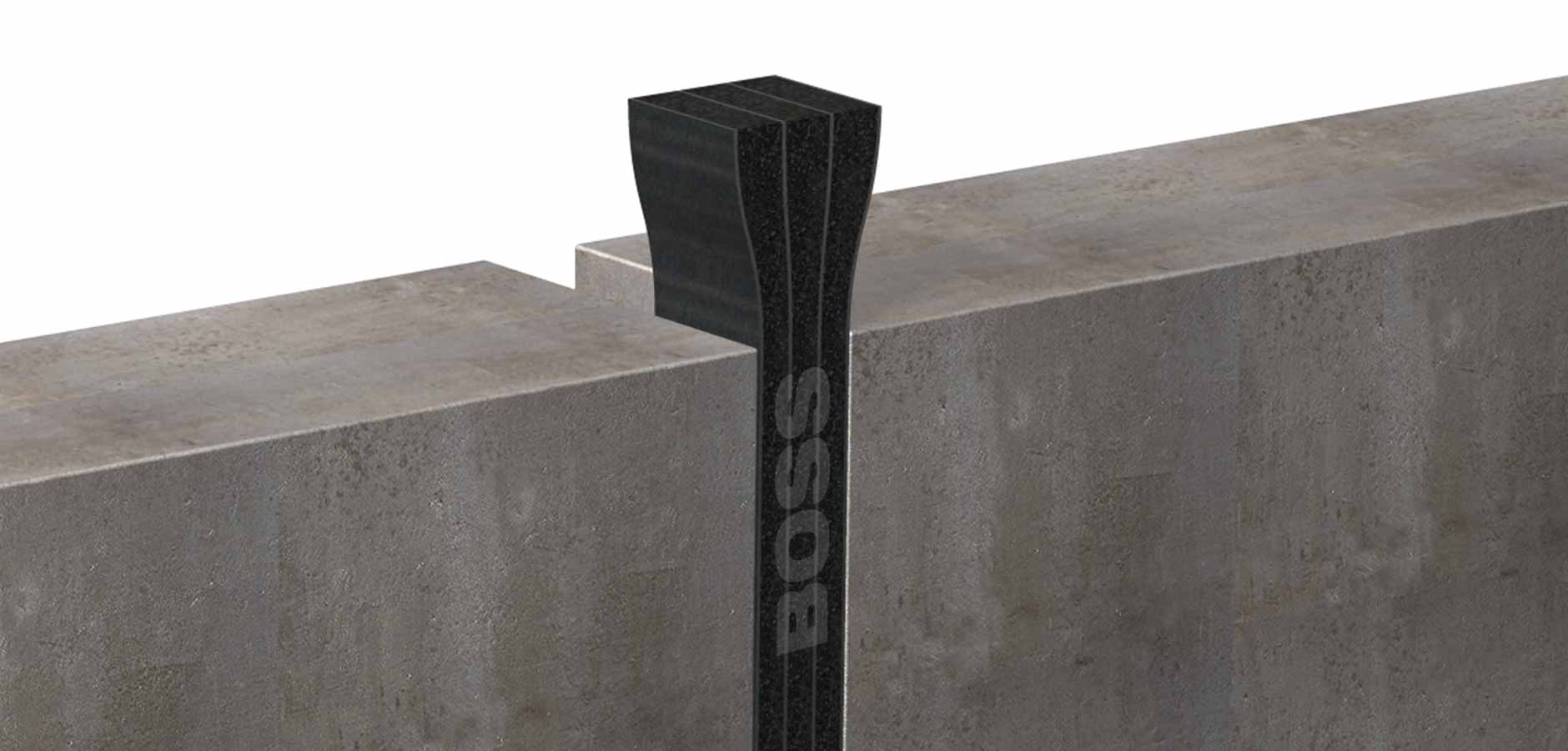

- Linear gap seals between rigid building elements
- Construction movement joints

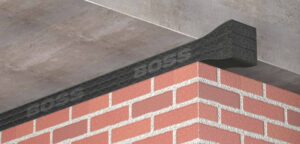

- Horizontal & vertical fire barriers
- Gap widths up to 150mm
- Use in commercial, industrial and residential buildings
Key Benefits
- Up to FRL -/120/120 fire protection
- Fast installation — simply friction-fit into place
- No special tools or fixings required
- Tested in joints up to 150mm wide
- Highly flexible
- Halogen-free & resists fungi and vermin
- Approved to AS1530.4:2014 & AS4072.1-2005

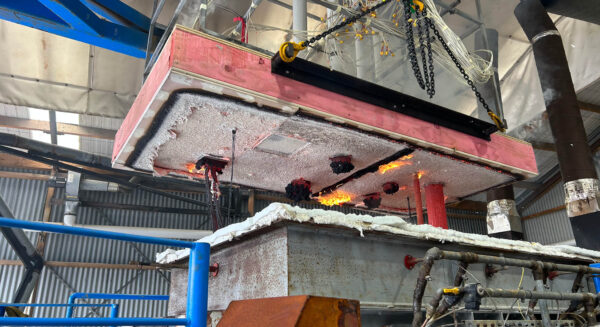

Testing
FireStrip-ALX™ is fully tested and approved to AS1530.4:2014 and AS4072.1-2005, delivering fire resistance up to FRL -/120/120 in linear gap applications in wall and floor elements.
Specific installation configurations and tested systems can be referenced via the BOSS Fire System Matrix and detailed fire assessment documents.
