PenoPatch™
BOSS PenoPatch™ is a fast-install, fire-rated putty patch engineered for sealing small service penetrations and blank openings in fire-rated walls. Made from an advanced fire-resistant putty with strong adhesion, it simply presses into place to instantly reinstate fire separation. The product can be installed in 30-seconds. Suitable for both new builds and existing sites, it is widely used by electricians & fire protection professionals.

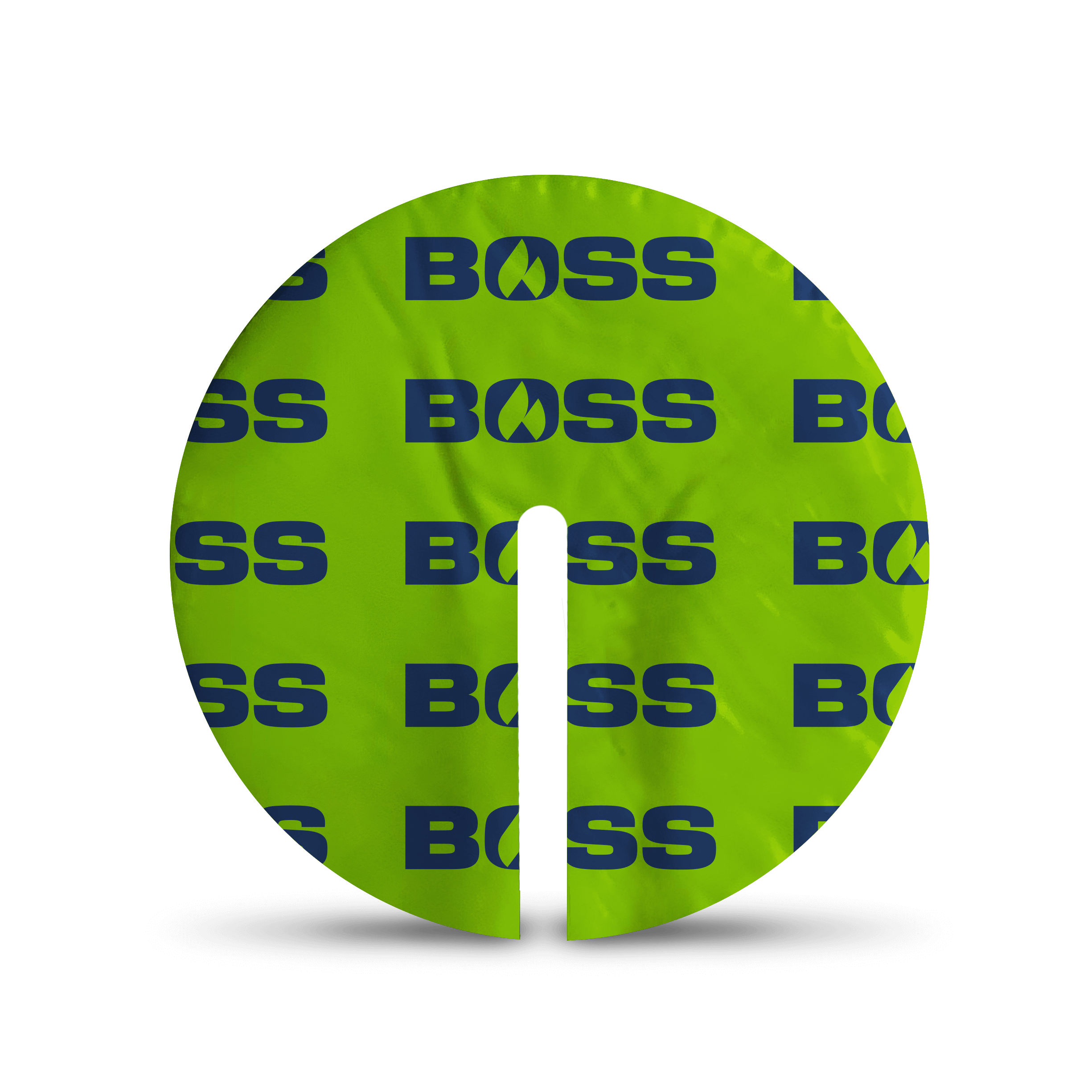

Supplied as 60mm or 100mm diameter discs, PenoPatch™ provides up to 60 minutes fire protection for individual cables, small bundled cables, conduits and pipes up to 16mm diameter, as well as blank penetrations in multiple certified wall systems. Installation is clean, tool-free, and requires no curing time, making it ideal for difficult access points and high-volume environments.
Applications

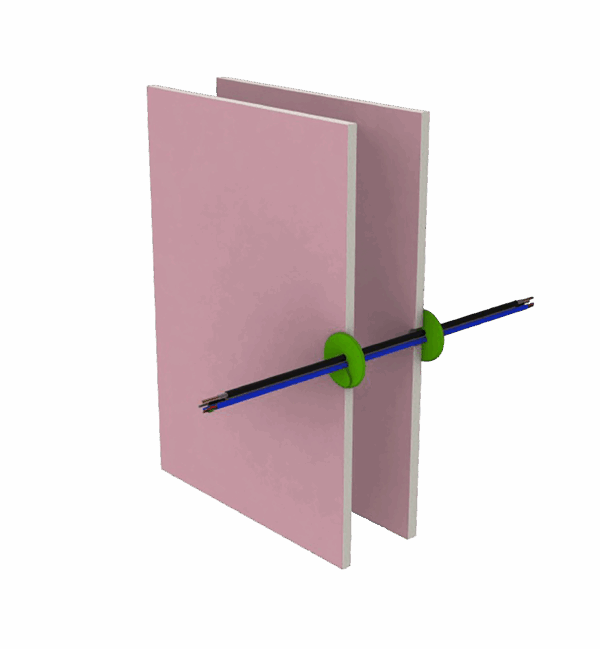

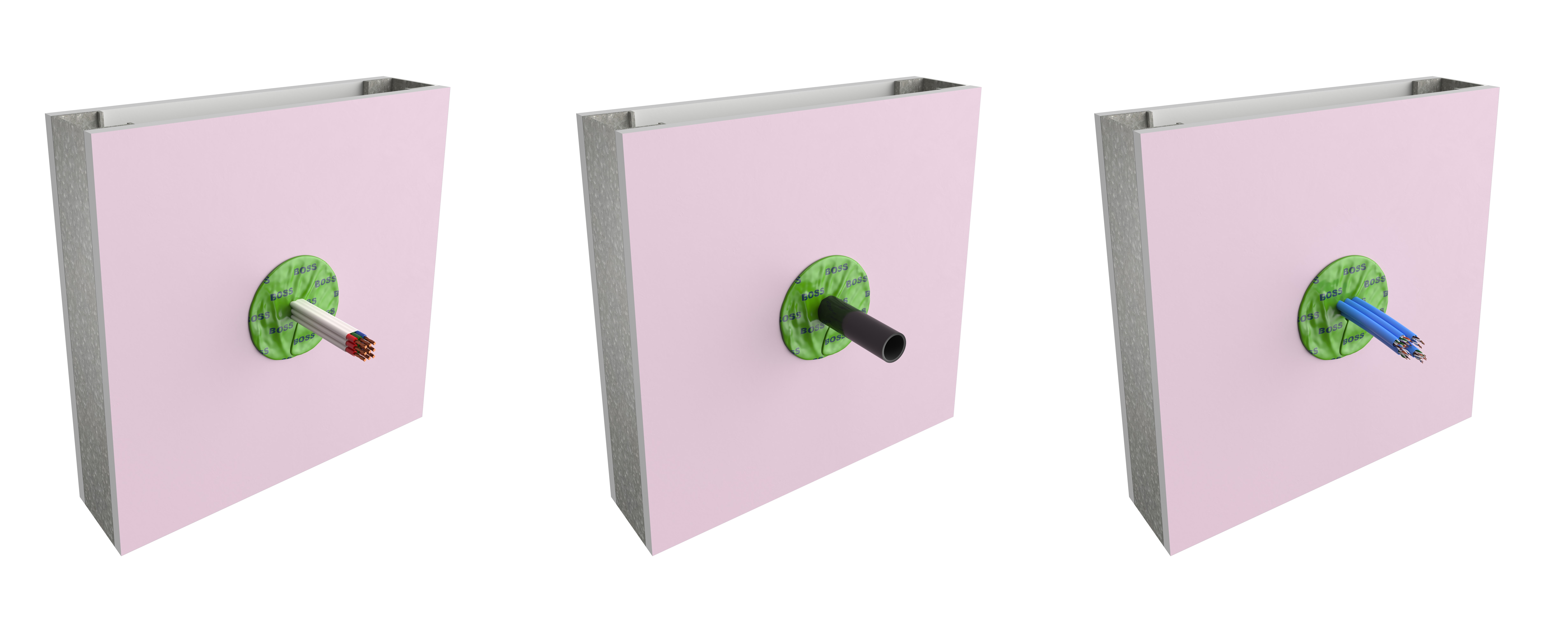

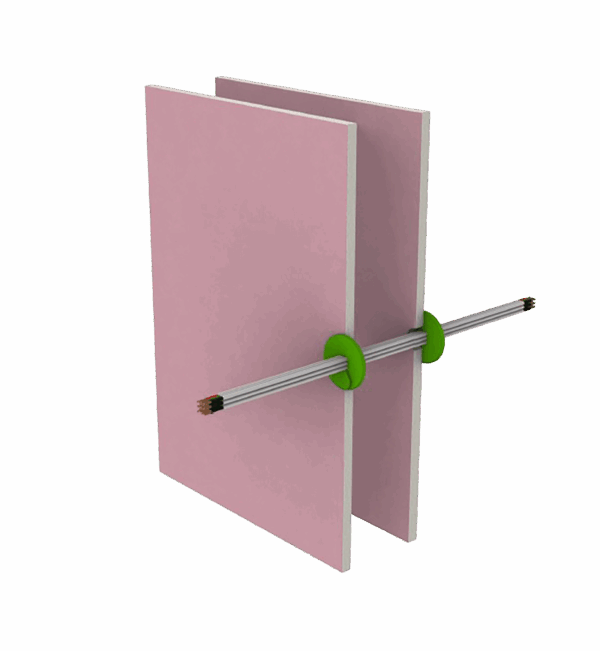

- Small electrical penetrations:
- Data cables (CAT6)
- TPS power cables
- Small cable bundles
- Small diameter pipes & conduits:
- PEX pipe up to 16mm Ø
- Steel & copper pipes up to 16mm Ø
- PVC conduits up to 16mm Ø
- Blank penetrations in fire-rated walls
- Ideal for rapid one-sided reinstatement applications
Key Benefits
- Install in 30 seconds — peel, press, seal
- Up to 60 minutes fire rating
- No mess, no cure time
- Low cost & highly versatile solution
- Suitable for new builds & retrofits
- Easy to certify and audit on-site
- Tested in a wide variety of wall substrates:
- Plasterboard, Concrete, Masonry, AAC/Hebel, Speedpanel & Korok

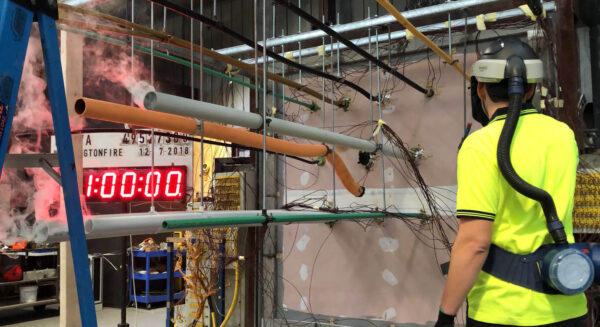

Testing
BOSS PenoPatch™ is tested and approved to AS1530.4:2014, AS4072.1-2005, achieving up to FRL -/60/60 depending on service type, substrate thickness and configuration.
Performance approvals include single and multiple cable types, metallic and PEX pipes up to 16mm diameter, and blank seals across a variety of wall substrates. Compliance must be verified using the BOSS Fire System Matrix, ensuring correct aperture sizing and tested system selection.
