BF-2305-7
System details
- Type
- Blank Seal
- Element
- Wall
- Substrate
- AAC / Hebel
- Minimum Substrate Thickness
- 100 mm
- FRL / FRR
- -/120/120
- Trade
- Construction (Linear Gaps / Blank Seals)
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Max Width
- 1100 mm
- Max Length
- 1100 mm
- Aperture
- Up to 1100 x 1100 mm
- Sealant Depth
- Fill Gaps mm
- Sealant Fillet
- 0 mm
Specimen size & details

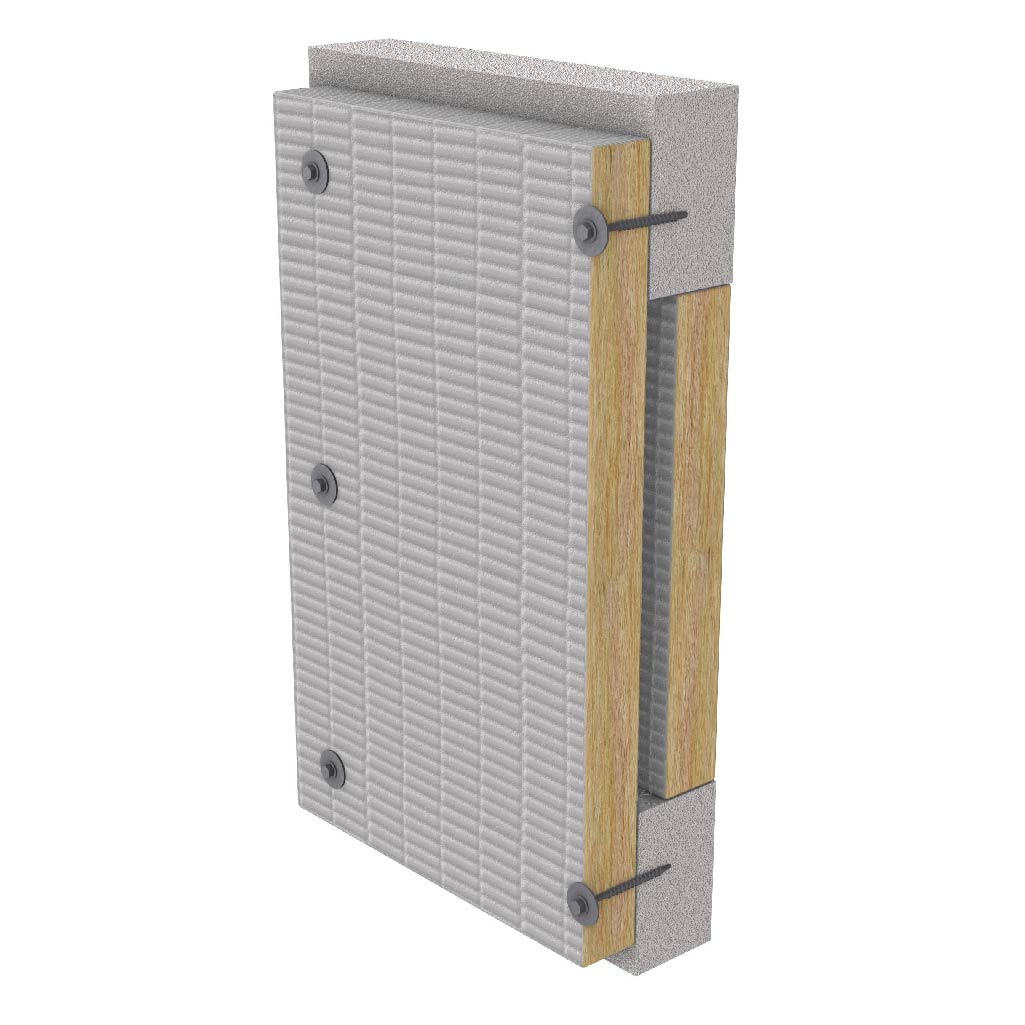

100 mm thick double layer of BOSS Batt™ friction fitted into an aperture up to 1100 mm x 1100 mm in size, coated with 1 mm DFT BOSS Ablative Coating™. A bead of sealant is applied to the edges of the batt and the separating element to both sides.
