BF-2314-21
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Permanent Polymer Formwork
- Minimum Substrate Thickness
- 100 mm
- FRL / FRR
- -/90/-
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Steel Pipe
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 220 mm
- Service Diameter Range
- Up to 220 mm
- Aperture
- Up to 1100 x 1100 mm
- Sealant Depth
- 10 mm
- Sealant Fillet
- 0 mm
Specimen size & details

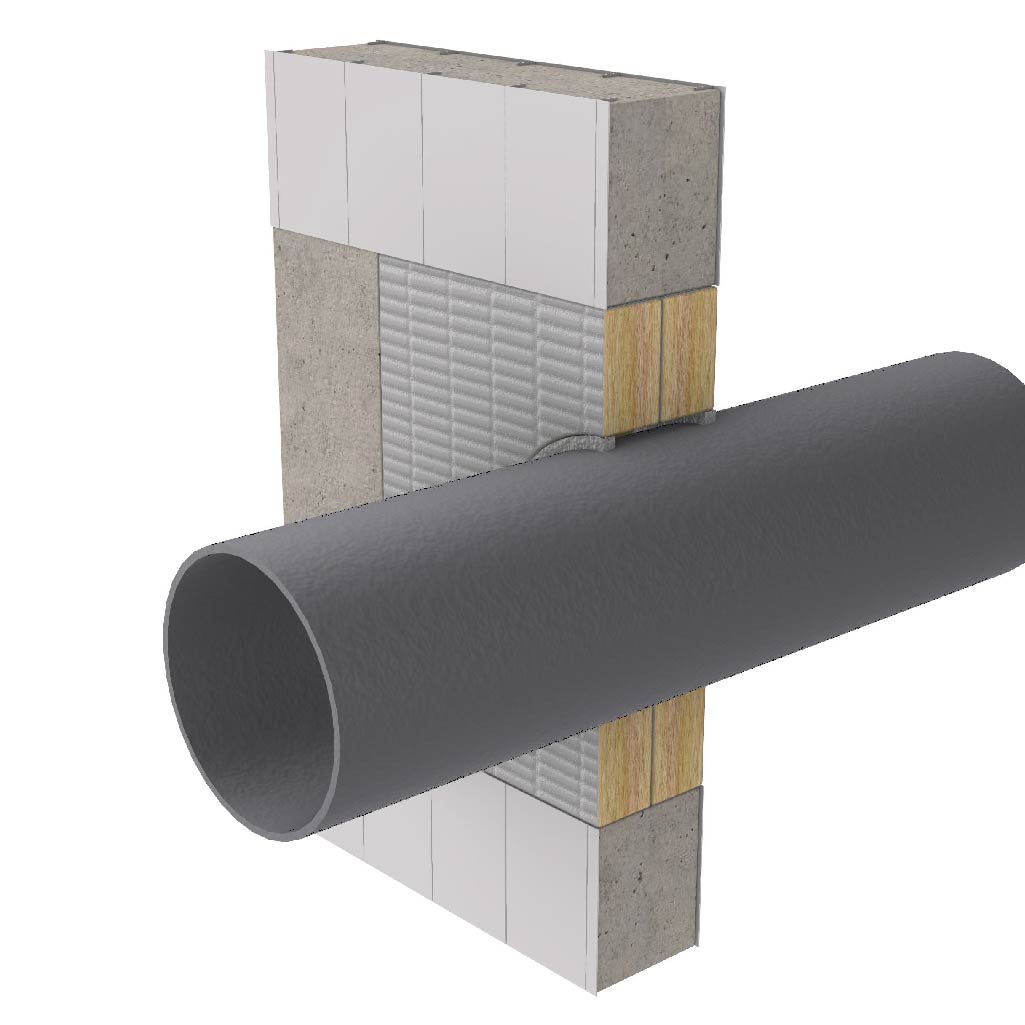

Up to 220 mm steel pipe penetrating 2 layers of BOSS Batt™ protecting an aperture up to 1100 mm x 1100 mm, sealed with FireMastic-300™ 10 mm deep in annualar gap on both sides, finished flush.
