BF-2367-7
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- AAC / Hebel
- Minimum Substrate Thickness
- 144 mm
- FRL / FRR
- -/120/120
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 100 mm
- Max Diameter
- 100 mm
- Service Diameter Range
- 100 mm
- Aperture
- Up to 1200 x 500 mm
- Annular Gap
- 5 mm
- Sealant Depth
- 10 mm
- Sealant Fillet
- 0 mm
Specimen size & details

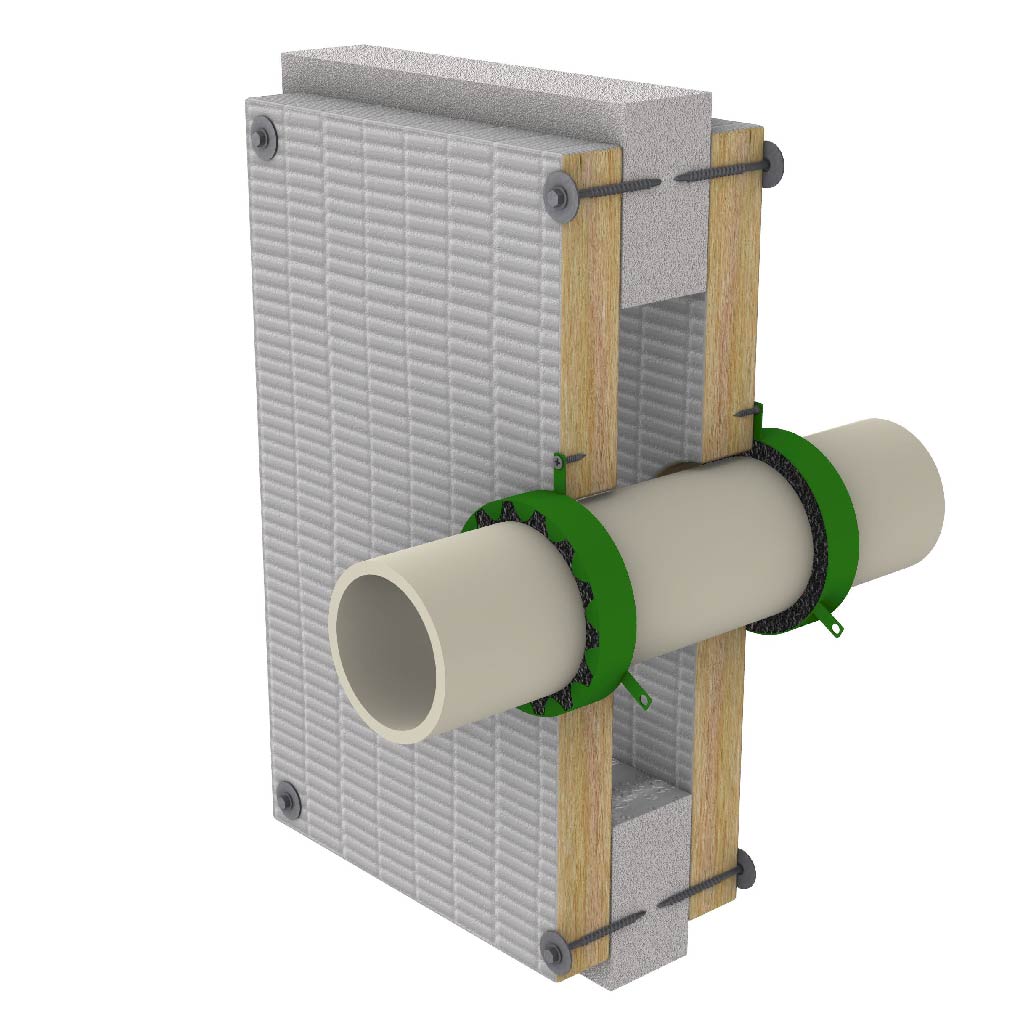

100 mm uPVC pipe with 3.2 mm wall thickness, penetrating 2 layers of BOSS Batt™ protecting an aperture up to 1200 mm x 500 mm. The system includes a 100 mm BOSS MaxiCollar™ installed to both sides. Installed in min 144 mm thick walls.
