BF-2368-5
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Masonry
- Minimum Substrate Thickness
- 75 mm
- FRL / FRR
- -/120/90
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 40 mm
- Service Diameter Range
- Up to 40 mm
- Aperture
- Up to 1200 x 500 mm
- Annular Gap
- 15 mm
- Sealant Depth
- 5 mm
- Sealant Fillet
- 0 mm
Specimen size & details

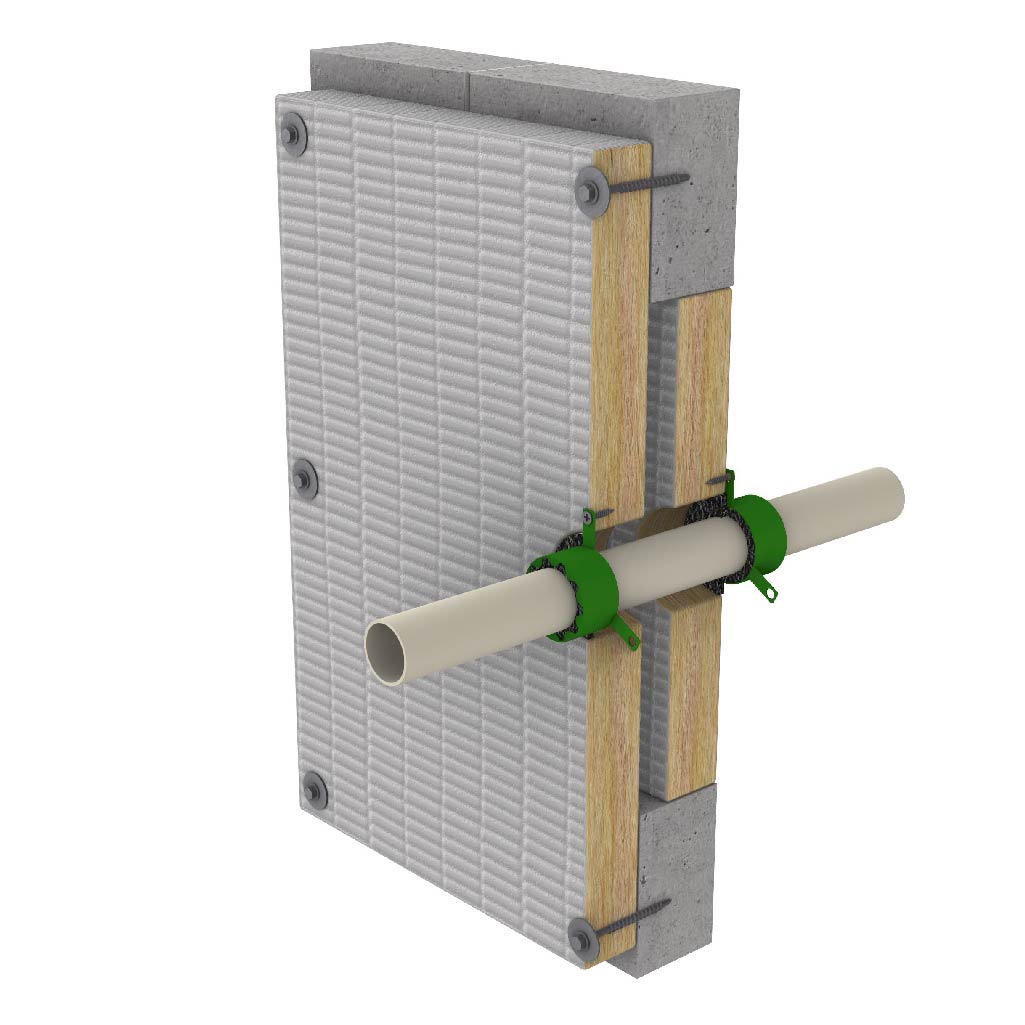

Up to 40 mm uPVC pipe with 3.0 mm wall thickness, penetrating 2 layers of BOSS Batt™ protecting an aperture up to 1200 mm x 500 mm. Sealant installed around service 5 mm deep in 15 mm annular gap finished flush both sides. The system includes a 40 mm BOSS MaxiCollar™ installed to both sides.
