BF-2452-16
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Speedpanel / Korok (w/Buildup)
- Minimum Substrate Thickness
- 96 mm
- FRL / FRR
- -/90/90
- Trade
- Electrical
- Service
- Multicore / Mains / Orange Circular
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Annular Gap
- Up to 20 mm
- Sealant Depth
- 16 mm
- Sealant Fillet
- 50 mm

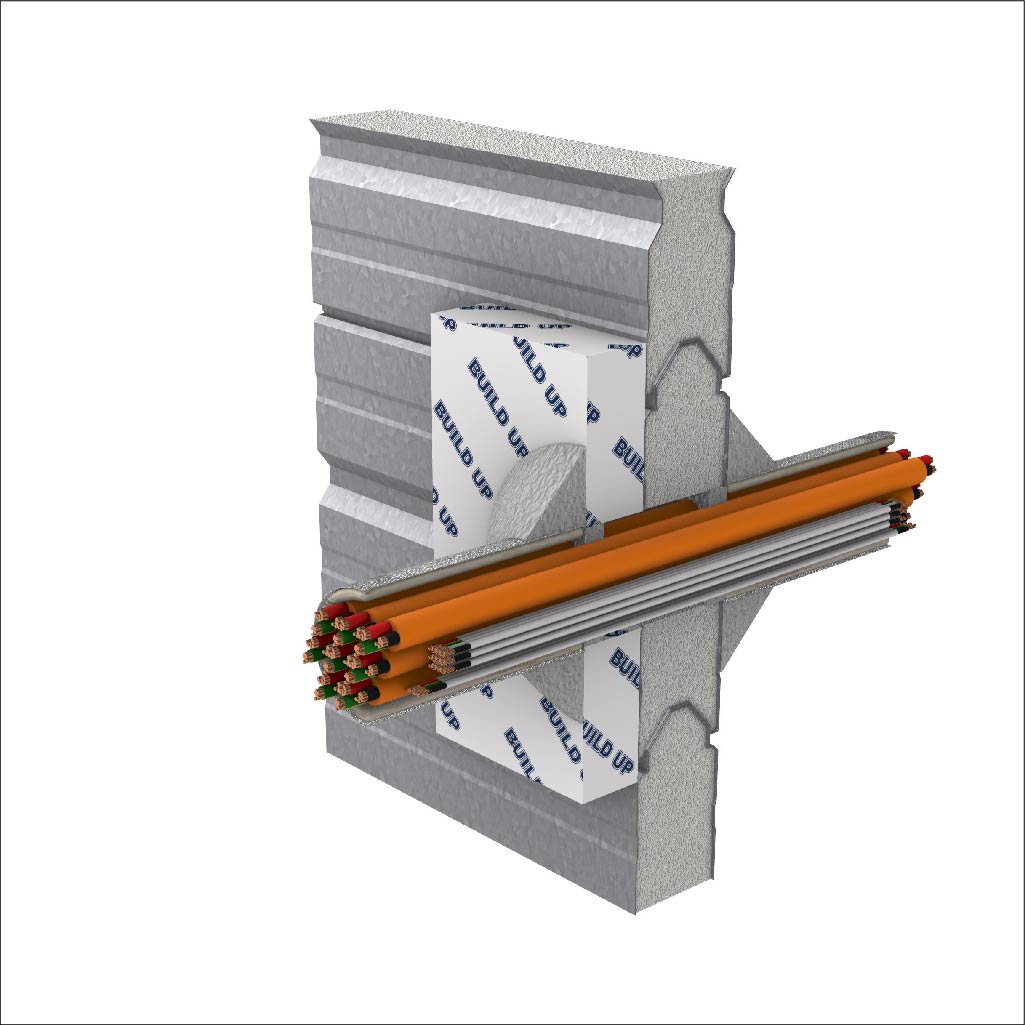

Specimen size & details
Cable bundle
-Up to 2.5mm² 2C+E Power Cable
-Up to 3 x 6mm² 3C+E Power Cables
-Up to 8 x 16mm² 3C+E Power Cables
FireMastic-300™ Sealant installed 16mm deep in annular gap up to 20mm wide, finished with a 50 mm x 50 mm fillet both sides. 600mm of Thermal Defence Wrap each side of the wall.
