BF-2583-4
System details
- Type
- Linear Joint
- Element
- Wall
- Substrate
- Concrete
- Minimum Substrate Thickness
- 250 mm
- FRL / FRR
- -/300/90
- Trade
- Construction (Linear Gaps / Blank Seals)
- Fire Rating
- 300
Fire-stopping products
Application dimensions
- Max Width
- 30 mm
- Max Length
- 30 mm
- Aperture
- Up to 30 wide mm
- Sealant Depth
- 15 mm
Specimen size & details

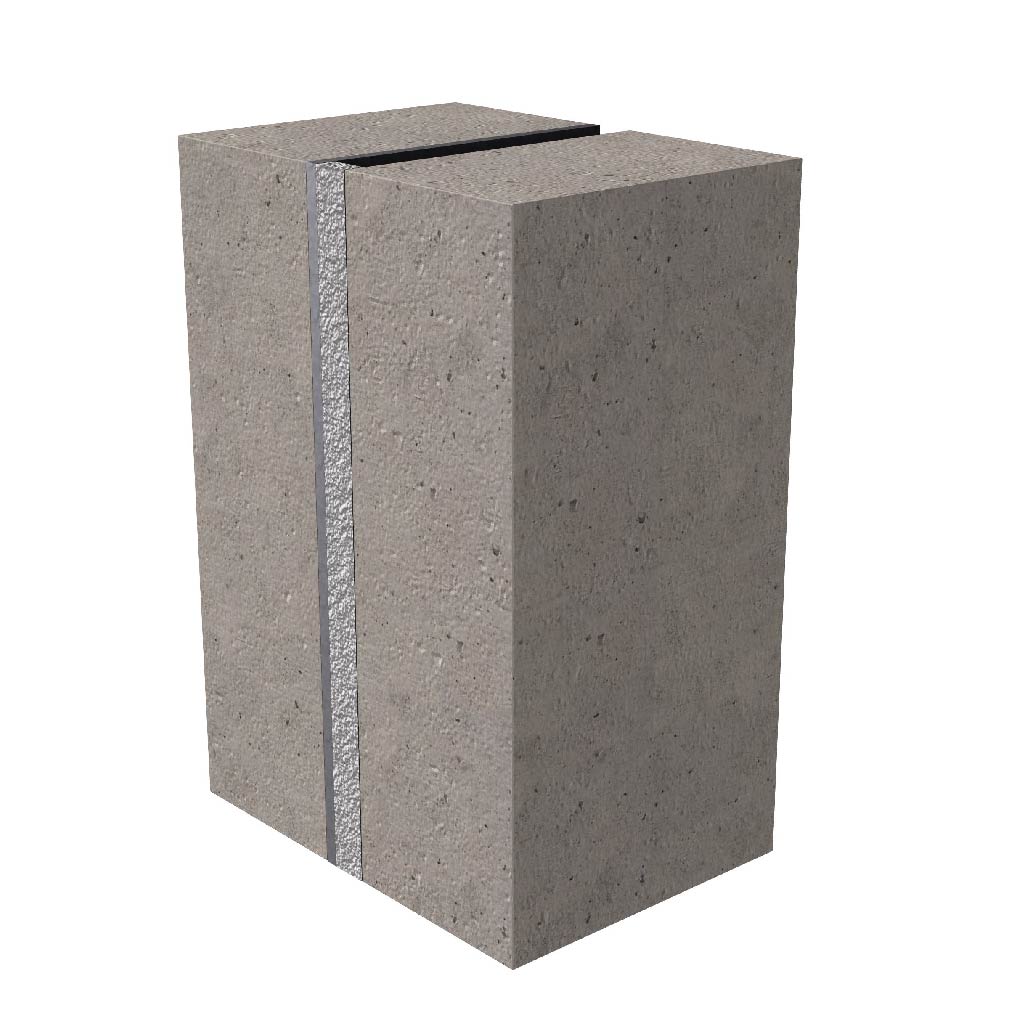

Linear gap seal up to 30 mm wide, with 15 mm deep sealant applied flush with the wall face, installed on one side only of a 250 mm thick masonry wall to rigid mild steel system gap.
