BF-2588-4
System details
- Type
- Linear Joint
- Element
- Wall
- Substrate
- Concrete
- Minimum Substrate Thickness
- 100 mm
- FRL / FRR
- -/30/15
- Trade
- Construction (Linear Gaps / Blank Seals)
Fire-stopping products
Application dimensions
- Max Width
- 20 mm
- Max Length
- 20 mm
- Aperture
- Up to 20 wide mm
- Sealant Depth
- 10 mm
Specimen size & details

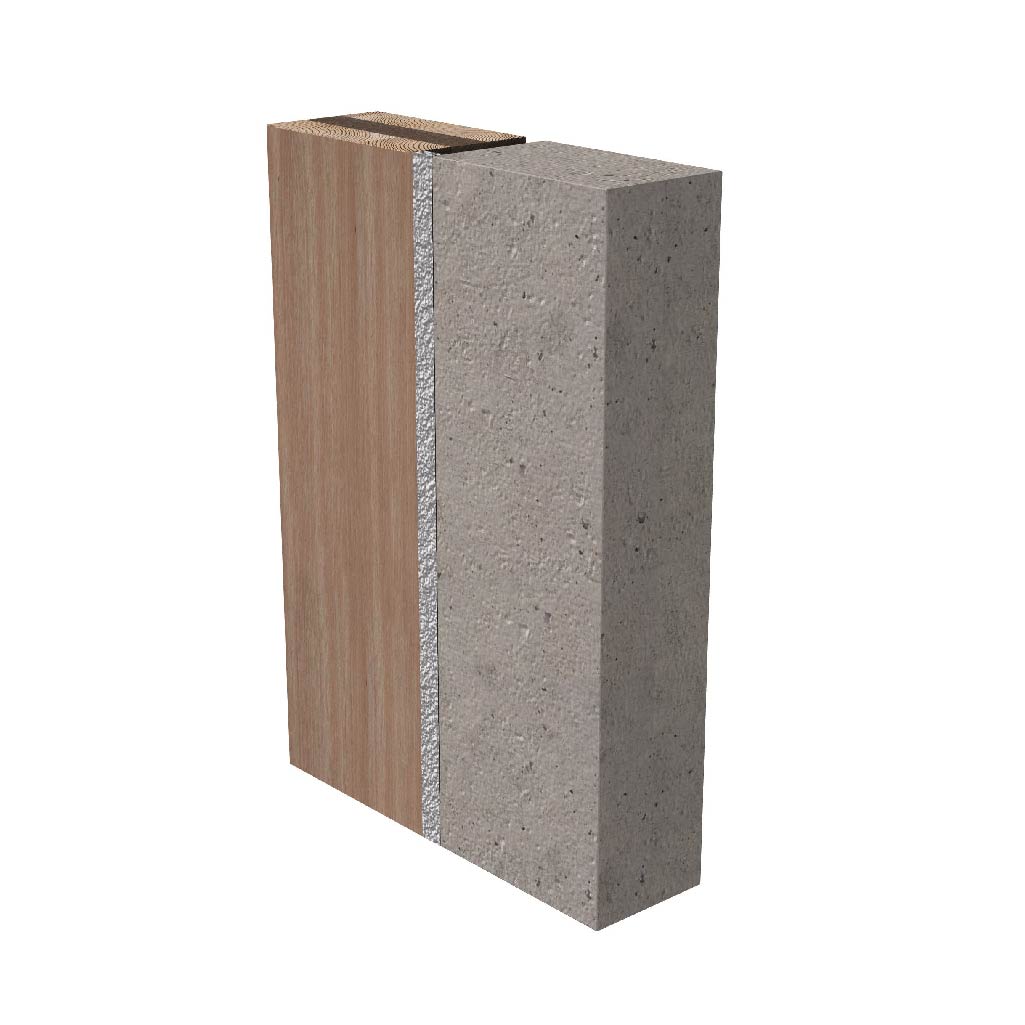

Linear gap seal up to 20 mm wide, with 10 mm deep sealant applied flush with the wall face, installed on one side only of a 100 mm thick masonry wall to softwood timber system gap.
