BF-2607-25
System details
- Type
- Linear Joint
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 150 mm
- FRL / FRR
- -/180/120
- Trade
- Construction (Linear Gaps / Blank Seals)
- Fire Rating
- 180
Fire-stopping products
Application dimensions
- Max Width
- 12 mm
- Max Length
- 12 mm
- Aperture
- 12 mm
- Sealant Depth
- 6 mm
Specimen size & details

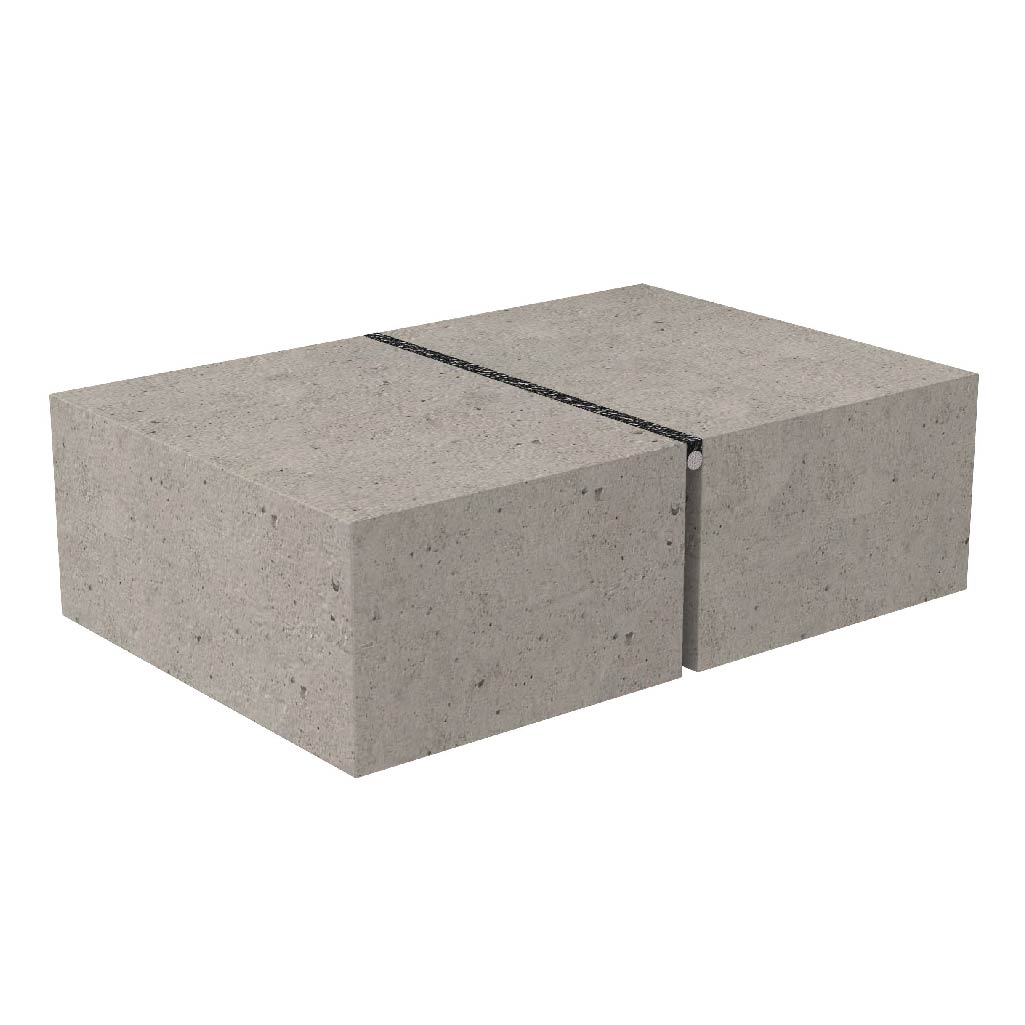

Linear gap seal up to 12 mm wide, with 6 mm deep sealant applied flush with the top face of the floor, backed by a 13 mm PEF backing rod. System installed to one side only of a 150 mm thick floor system.
