BF-2615-25
System details
- Type
- Linear Joint
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 175 mm
- FRL / FRR
- -/240/60
- Trade
- Construction (Linear Gaps / Blank Seals)
- Fire Rating
- 240
Fire-stopping products
Application dimensions
- Max Width
- 50 mm
- Max Length
- 50 mm
- Aperture
- 50 mm
- Sealant Depth
- 25 mm
Specimen size & details

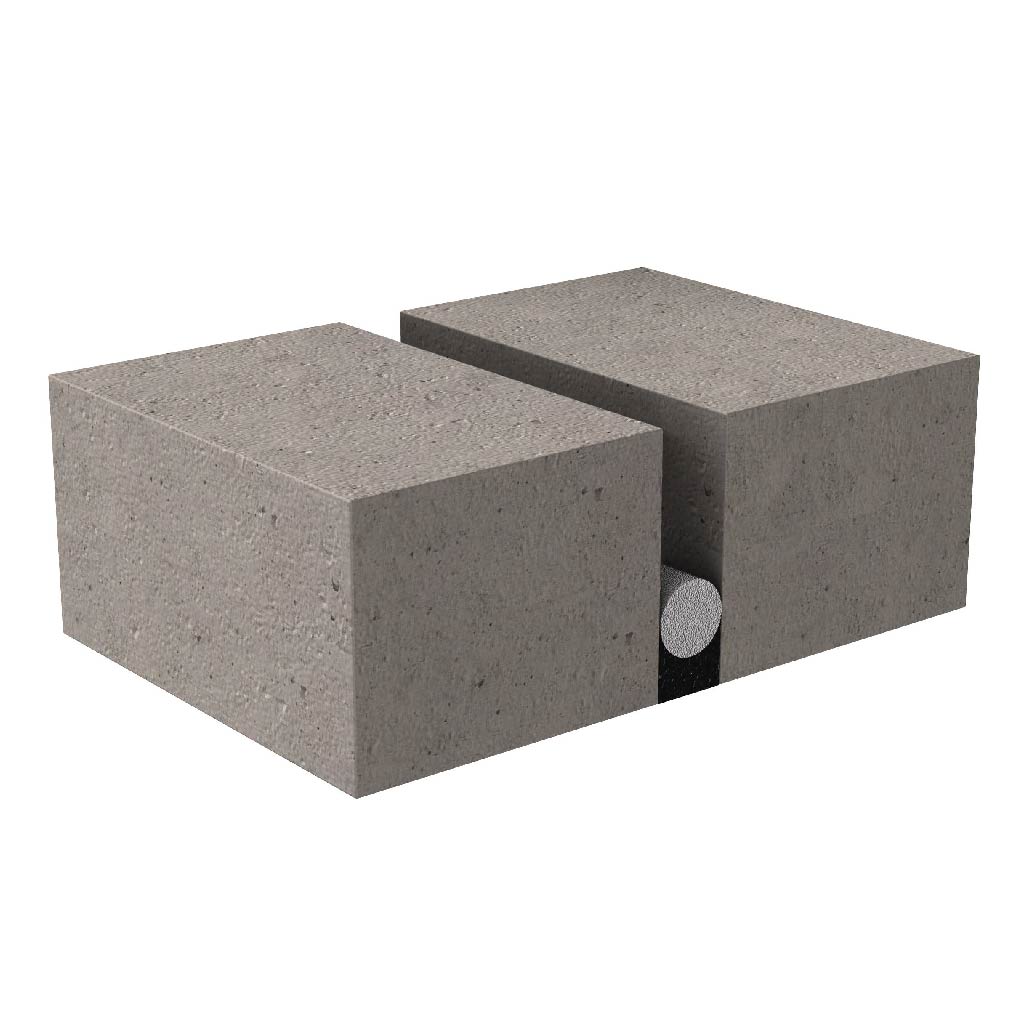

Linear gap seal up to 50 mm wide, with 25 mm deep sealant applied flush with the top face of the floor, backed by two 25 mm PEF backing rods. System installed to one side only of a 175 mm thick floor system.
