BF-2618-26
System details
- Type
- Linear Joint
- Element
- Floor
- Substrate
- AAC Floor
- Minimum Substrate Thickness
- 175 mm
- FRL / FRR
- -/90/60
- Trade
- Construction (Linear Gaps / Blank Seals)
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Max Width
- 60 mm
- Max Length
- 60 mm
- Aperture
- 60 mm
- Sealant Depth
- 6 mm

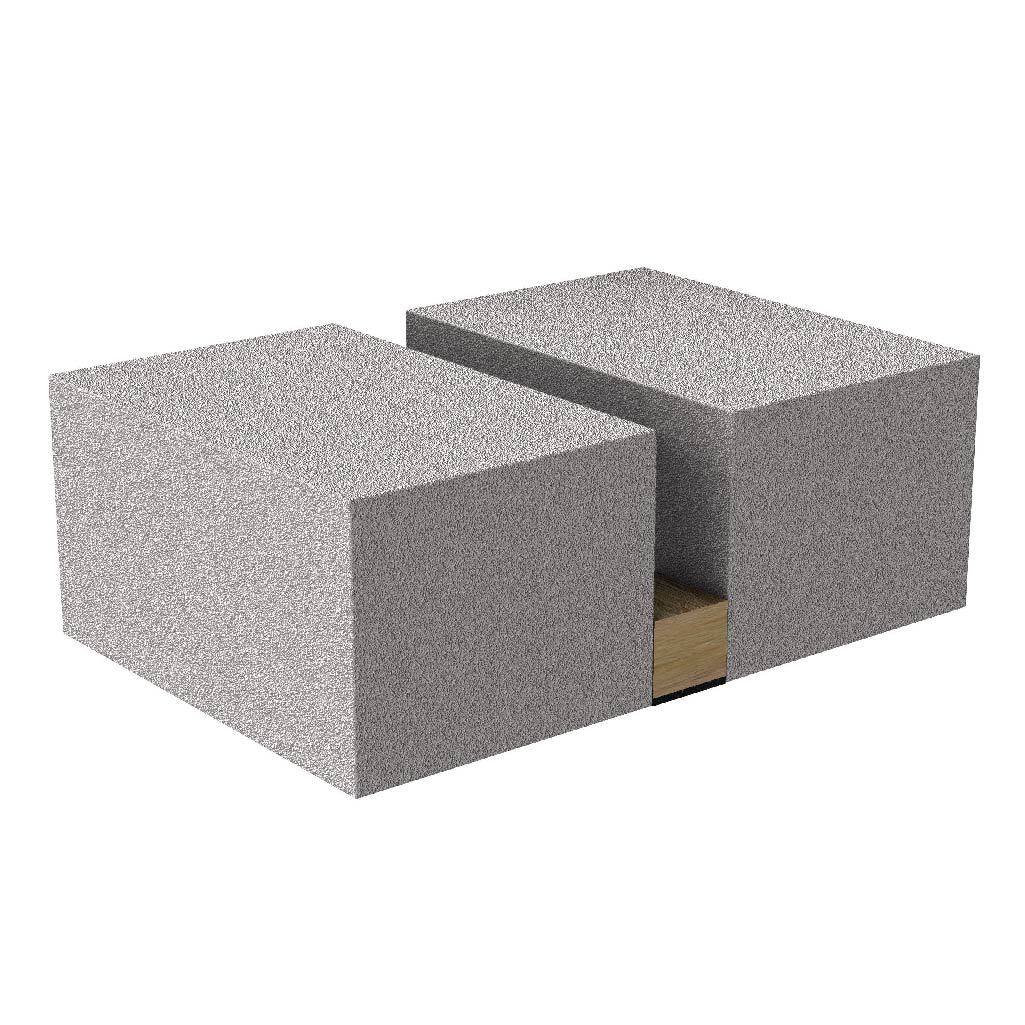

Specimen size & details
Linear gap seal up to 60 mm wide, with 6 mm deep sealant applied flush with the underside of the floor, backed by stone wool insulation to a minimum depth of 50 mm. System installed to one side only of a 175 mm thick floor system.
