BF-2634-25
System details
- Type
- Linear Joint
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 175 mm
- FRL / FRR
- -/240/240
- Trade
- Construction (Linear Gaps / Blank Seals)
- Fire Rating
- 240
Fire-stopping products
Application dimensions
- Max Width
- 150 mm
- Max Length
- 150 mm
- Aperture
- 150 mm
- Sealant Depth
- 10 mm
Specimen size & details

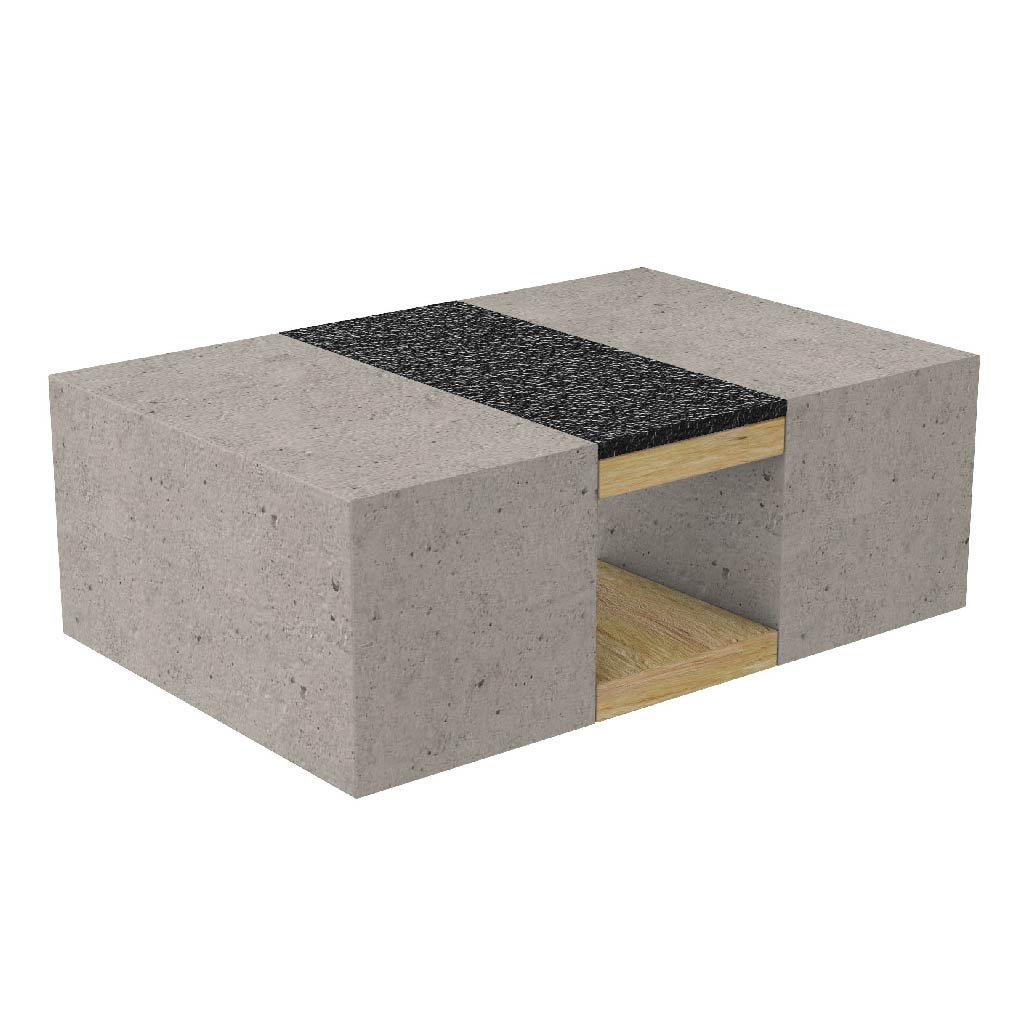

Linear gap seal up to 150 mm wide, with 10 mm deep sealant applied flush with the top face of the floor, backed by 1 layer of 25 mm thick Rockwool 825 FireBatt. 1 layer of 25 mm thick Rockwool 825 FireBatt was also applied flush to the underside of the the floor. System installed in 175 mm thick floor system.
