BF-2645-17
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- AAC / Hebel (w/Buildup)
- Minimum Substrate Thickness
- 90 mm
- FRL / FRR
- -/60/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- HDPE
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 32 mm
- Service Diameter Range
- Up to 32 mm
- Annular Gap
- 4 mm
- Sealant Depth
- 5 mm

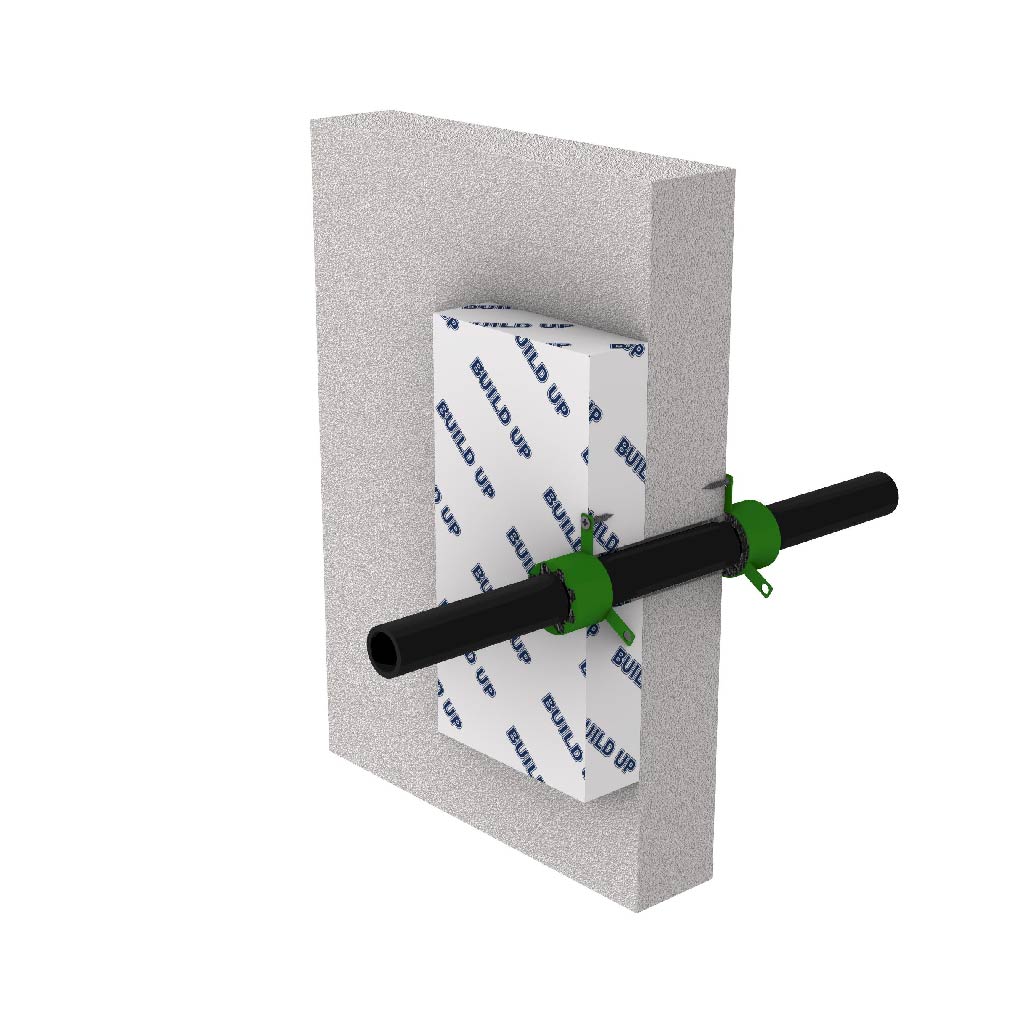

Specimen size & details
Up to 32 mm HDPE pipe with 3.1 mm maximum wall thickness. Sealant 5 mm deep in 4.0 mm annular gap both sides. 40 mm BOSS MaxiCollar™ installed on both sides.
