BF-2648-18
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Pronto Panel (w/Buildup)
- Minimum Substrate Thickness
- 90 mm
- FRL / FRR
- -/60/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- HDPE
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Min Diameter
- 40 mm
- Max Diameter
- 160 mm
- Service Diameter Range
- 40 - 160 mm
- Annular Gap
- 10 mm
- Sealant Depth
- 12.5 mm
Specimen size & details

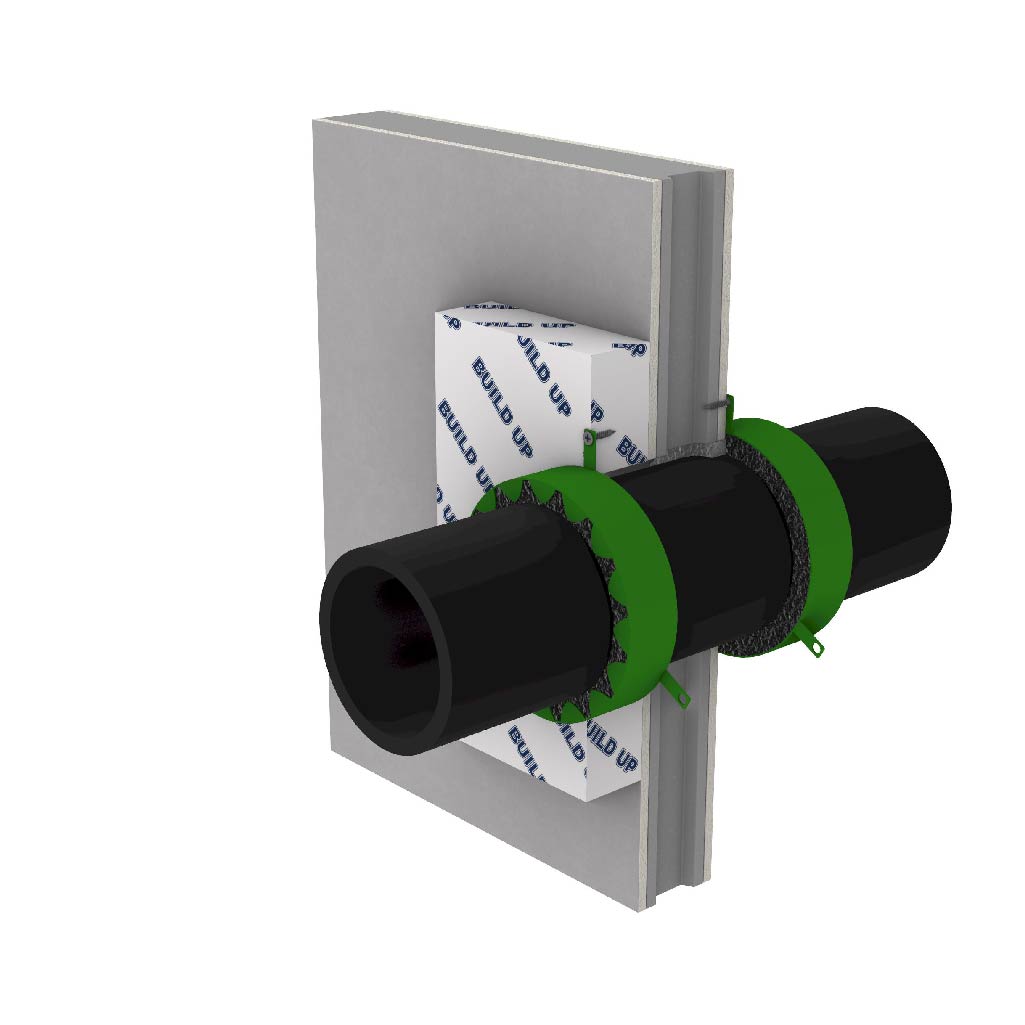

40 mm - 160 mm HDPE pipe with 4.9 mm - 9.5 mm maximum wall thickness. Sealant 12.5 mm deep in 10.0 mm annular gap both sides. 150 mm BOSS MaxiCollar™ installed on both sides. Wall to be built up as appropriate with an approved material to achieve a 100 mm thick wall.
