BF-2701-2
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Double Layer
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/60/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- HDPE
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Min Diameter
- 40 mm
- Max Diameter
- 150 mm
- Service Diameter Range
- 40 - 150 mm
- Annular Gap
- 9 mm
- Sealant Depth
- 12.5 mm
Specimen size & details

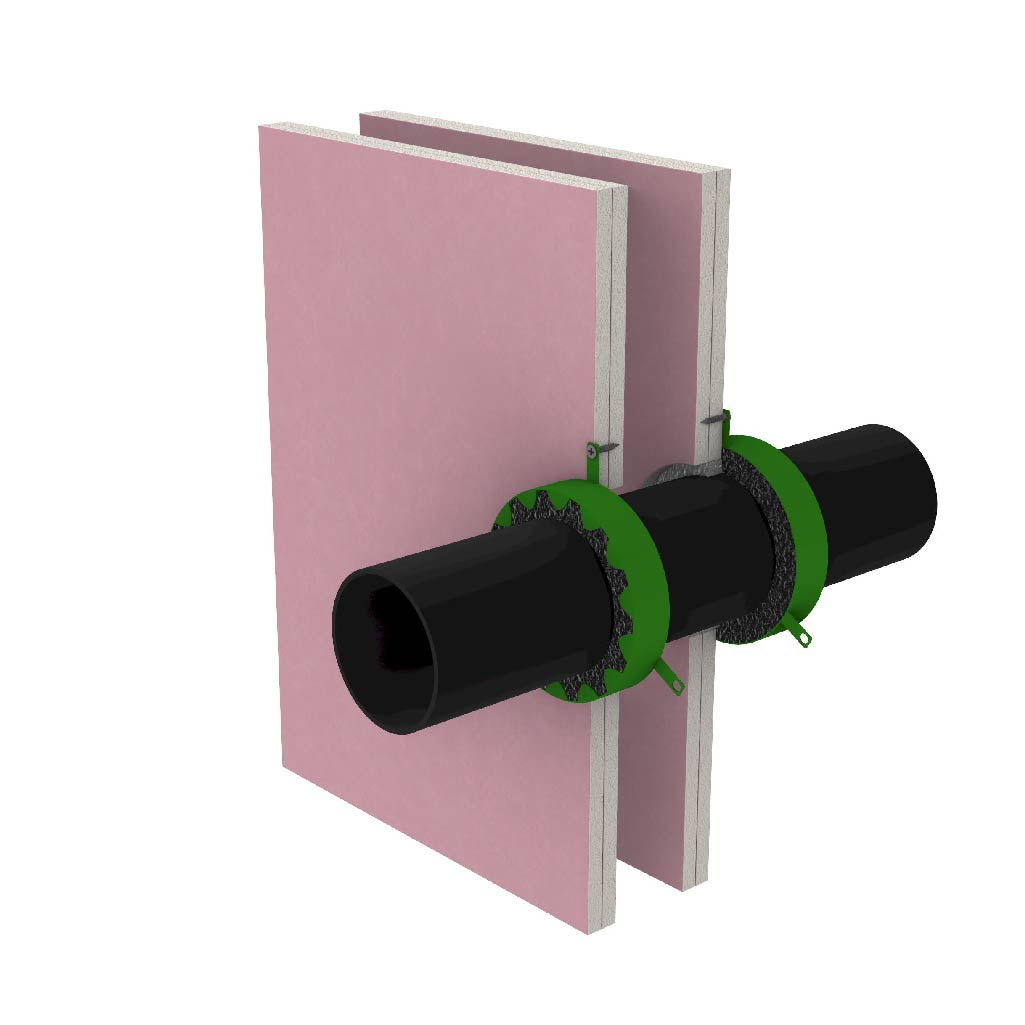

40 mm - 150 mm HDPE pipe with 14.5 mm maximum wall thickness. Sealant 12.5 mm deep in 9.0 mm annular gap both sides. BOSS MaxiCollar™ relative to pipe size, installed on both sides.
