BF-2708-17
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- AAC / Hebel (w/Buildup)
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/90/90
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- PPR
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Min Diameter
- 125 mm
- Max Diameter
- 160 mm
- Service Diameter Range
- 125 - 160 mm
- Annular Gap
- 10 mm
- Sealant Depth
- 10 mm
Specimen size & details

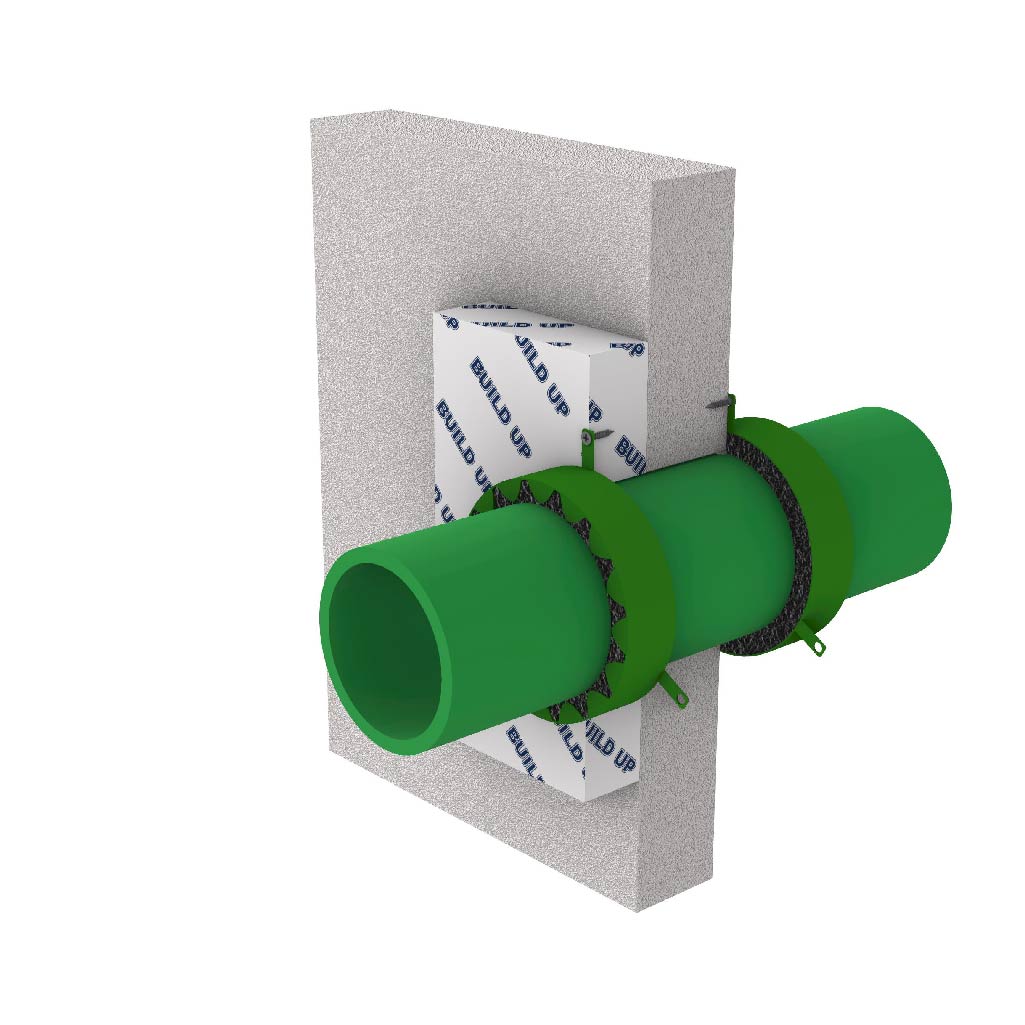

125 mm - 160 mm PPR pipe with 11.4 mm maximum wall thickness. Sealant 10.0 mm deep in 10.0 mm annular gap both sides. BOSS MaxiCollar™ relative to pipe size, installed on both sides.
