BF-2807-25
System details
- Type
- Service Penetration
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 150 mm
- FRL / FRR
- -/90/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 50 mm
- Service Diameter Range
- Up to 50 mm
- Annular Gap
- 11 mm
- Sealant Depth
- 10 mm
Specimen size & details

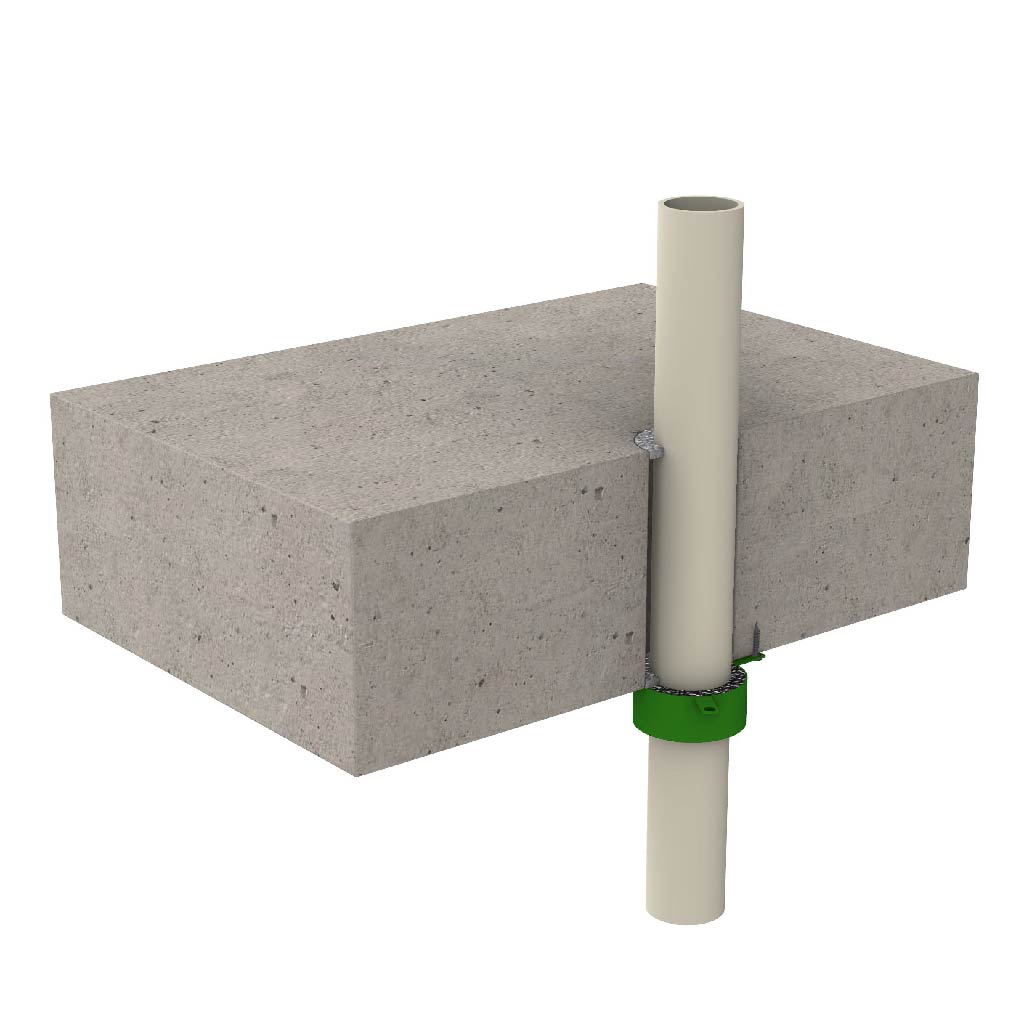

Up to 50 mm uPVC pipe with 2.4 mm maximum wall thickness. Sealant 10.0 mm deep in 11.0 mm annular gap both sides. 55 mm BOSS MaxiCollar™ installed on the underside.
