BF-2867-17
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- AAC / Hebel (w/Buildup)
- Minimum Substrate Thickness
- 100 mm
- FRL / FRR
- -/15/15
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
Fire-stopping products
Application dimensions
- Min Diameter
- 110 x 54 mm
- Max Diameter
- 110 x 54 mm
- Service Diameter Range
- 110 x 54 mm
- Aperture
- 126 x 62 mm
- Sealant Depth
- Surface mm
Specimen size & details

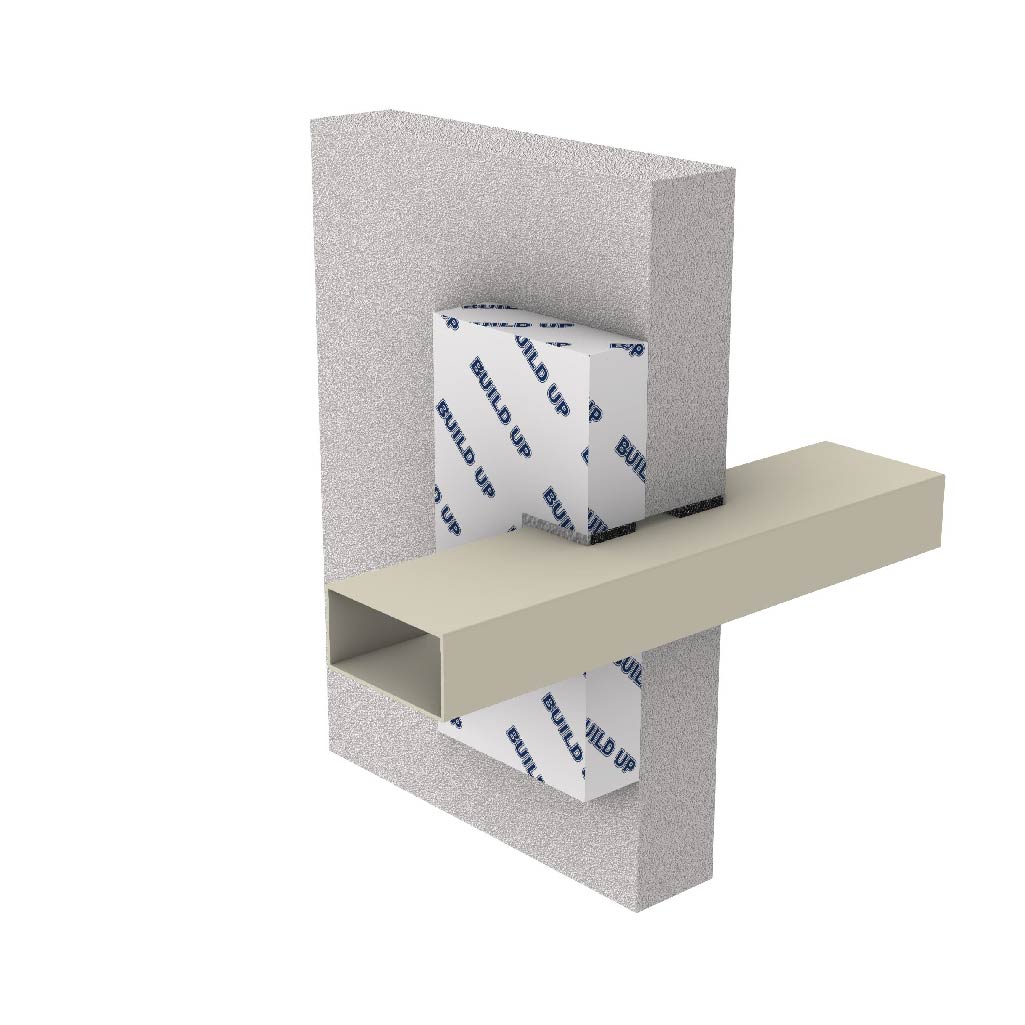

110 mm x 54 mm uPVC duct with 2.0 mm maximum wall thickness. 3 layers of BOSS UniWrap™ or BOSS PWP Pipe Wrap flush with the face of the separating element on both sides. Sealant applied to the ends of the BOSS UniWrap™ or BOSS PWP Pipe Wrap on both sides.
