BF-2869-5
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Masonry
- Minimum Substrate Thickness
- 100 mm
- FRL / FRR
- -/120/120
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 200 mm
- Max Diameter
- 200 mm
- Service Diameter Range
- 200 mm
- Annular Gap
- 35 mm
- Sealant Fillet
- 25 (Wall) x 40 (Pipe) mm
Specimen size & details

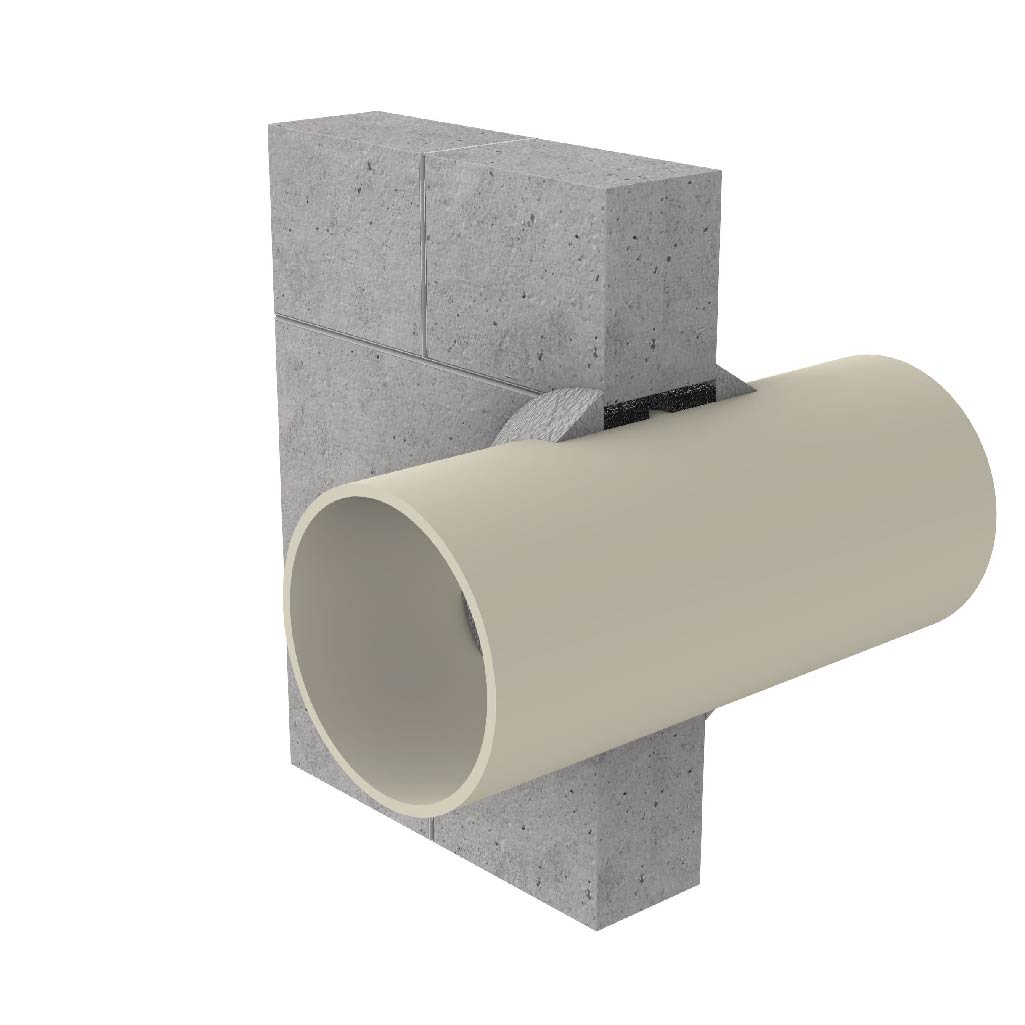

200 mm uPVC pipe with 7.7 mm maximum wall thickness. 5 layers of BOSS UniWrap™ or BOSS PWP Pipe Wrap flush with the face of the separating element on both sides. Fillet of sealant applied 25 mm wide (wall) x 40 mm deep (pipe) on both sides.
