BF-2963-5
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Masonry
- Minimum Substrate Thickness
- 75 mm
- FRL / FRR
- -/120/120
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 80 mm
- Service Diameter Range
- Up to 80 mm
- Annular Gap
- 11 mm
- Sealant Depth
- 5 mm
Specimen size & details

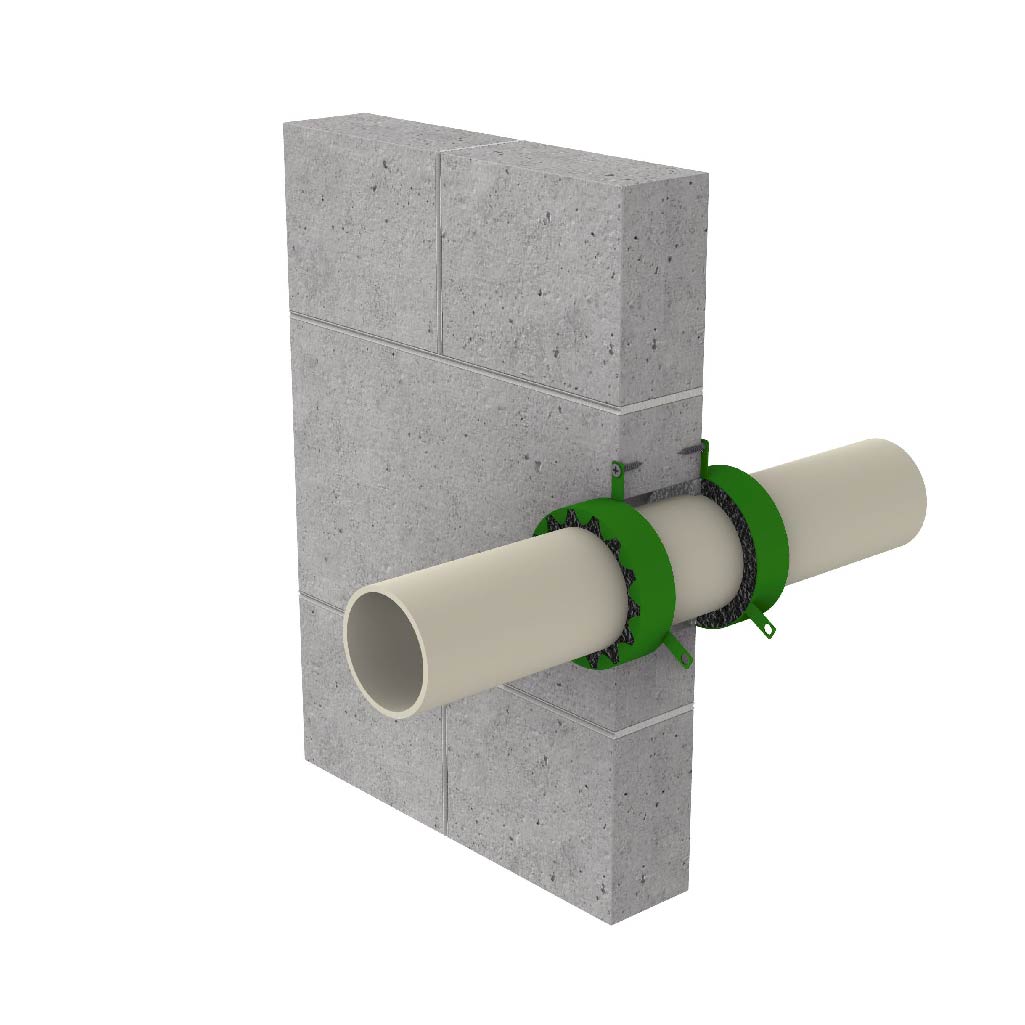

Up to 80 mm uPVC pipe with 3.4 mm wall thickness. Sealant installed around service 5 mm deep in 11 mm annular gap finished flush both sides. The system includes a 80 mm BOSS MaxiCollar™ installed to both sides.
