BF-3045-7
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- AAC / Hebel
- Minimum Substrate Thickness
- 150 mm
- FRL / FRR
- -/15/15
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- PE
Fire-stopping products
Application dimensions
- Min Diameter
- 400 mm
- Max Diameter
- 400 mm
- Service Diameter Range
- 400 mm
- Aperture
- Up to 1200 x 500 mm
- Annular Gap
- 0 mm
Specimen size & details

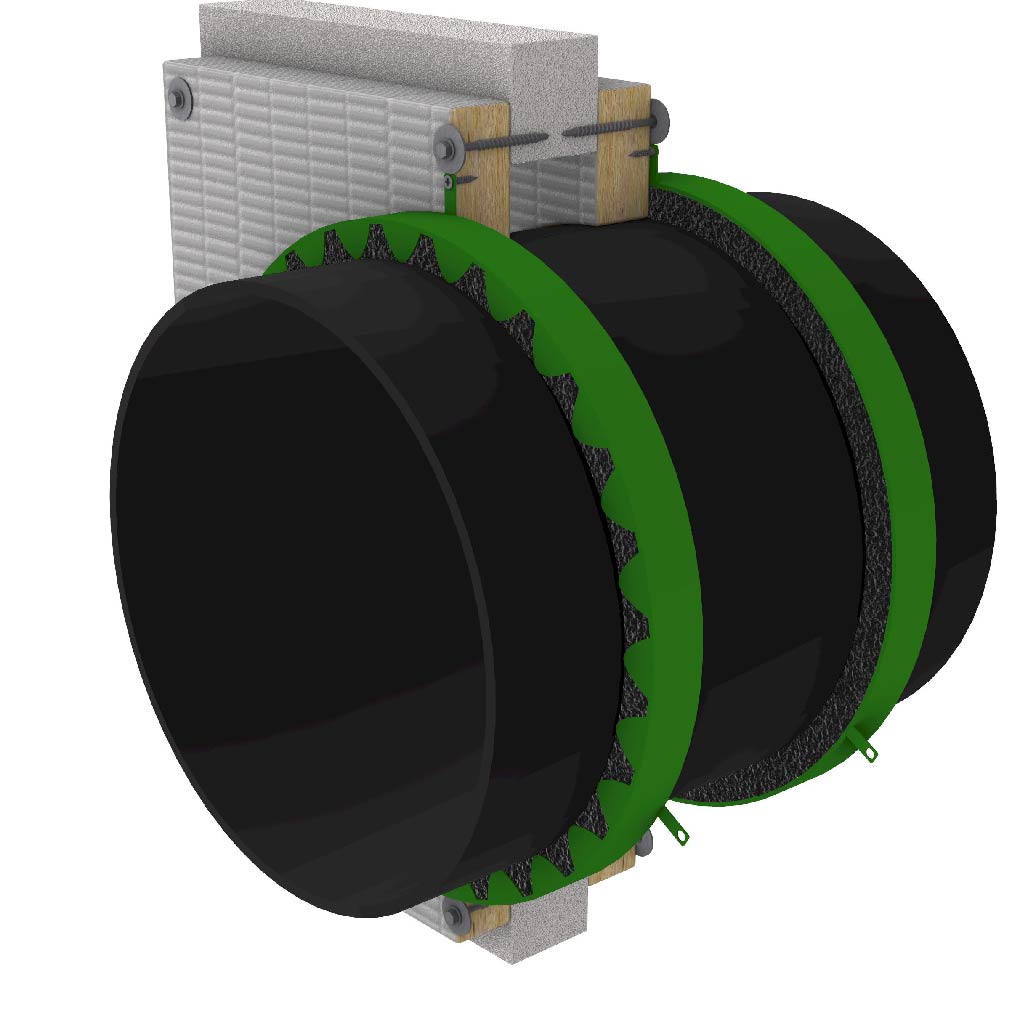

400 mm PE pipe with 8.0 mm maximum wall thickness, penetrating 2 layers of BOSS Batt™ protecting an aperture up to 1200 mm x 500 mm. 400 mm BOSS MaxiCollar™ installed on both sides.
Tested Capped/Uncapped.
