BF-3090-12
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Shaftliner
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/120/90
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- CPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 42 mm
- Service Diameter Range
- Up to 42 mm
- Annular Gap
- 0.9 mm
Specimen size & details

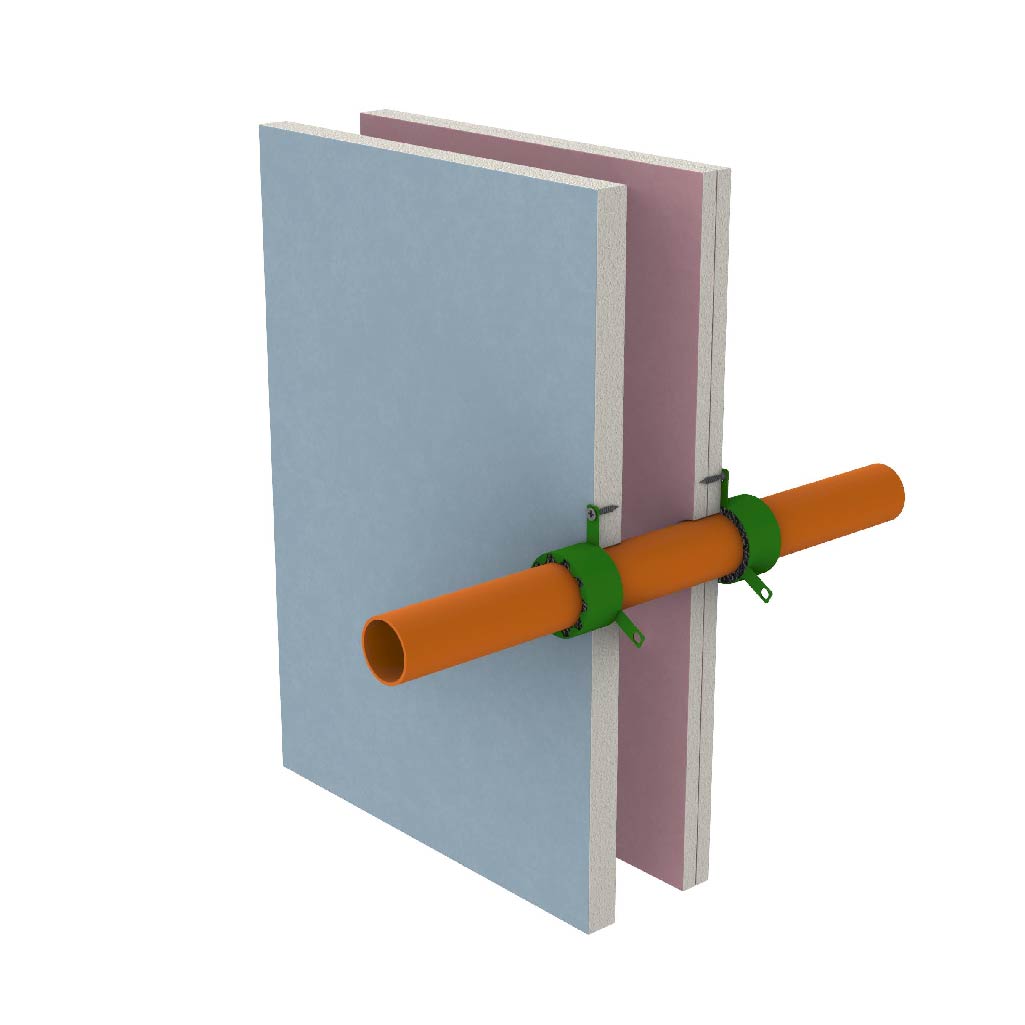

Up to 42.2 mm cPVC pipe with 3.3 mm wall thickness. The system includes a 40 mm BOSS MaxiCollar™ installed to both sides.
