BF-3091-17
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- AAC / Hebel (w/Buildup)
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/120/120
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- CPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 48 mm
- Service Diameter Range
- Up to 48 mm
- Annular Gap
- 0.85 mm

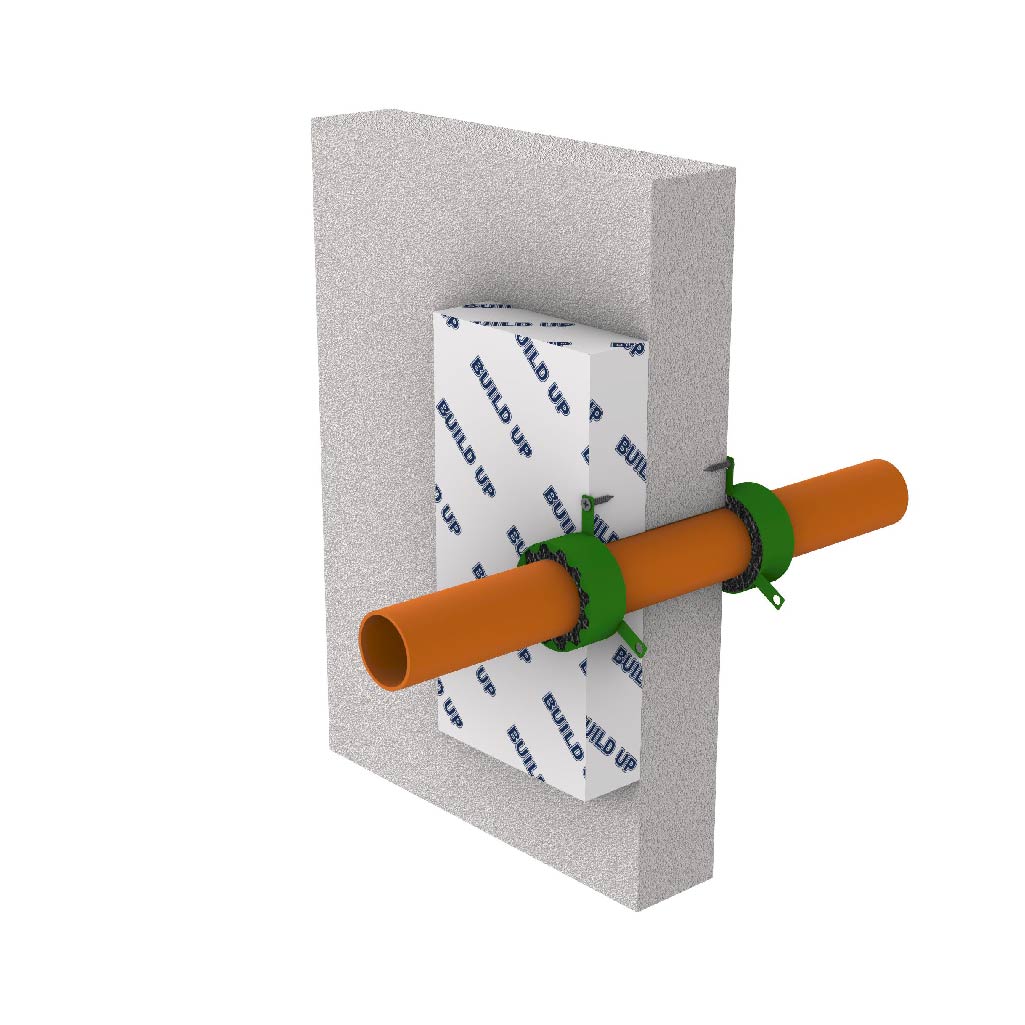

Specimen size & details
Up to 48.3 mm cPVC pipe with 3.8 mm wall thickness. The system includes a 50 mm BOSS MaxiCollar™ installed to both sides.
