BF-3221-33
System details
- Type
- Blank Seal
- Element
- Floor
- Substrate
- Cross Laminated Timber (CLT)
- Minimum Substrate Thickness
- 200 mm
- FRL / FRR
- -/120/120
- Trade
- Construction (Linear Gaps / Blank Seals)
- Service
- Other
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Max Width
- 250 mm
- Max Length
- 250 mm
- Aperture
- 250 x 250 mm
- Sealant Fillet
- 5 mm
Specimen size & details

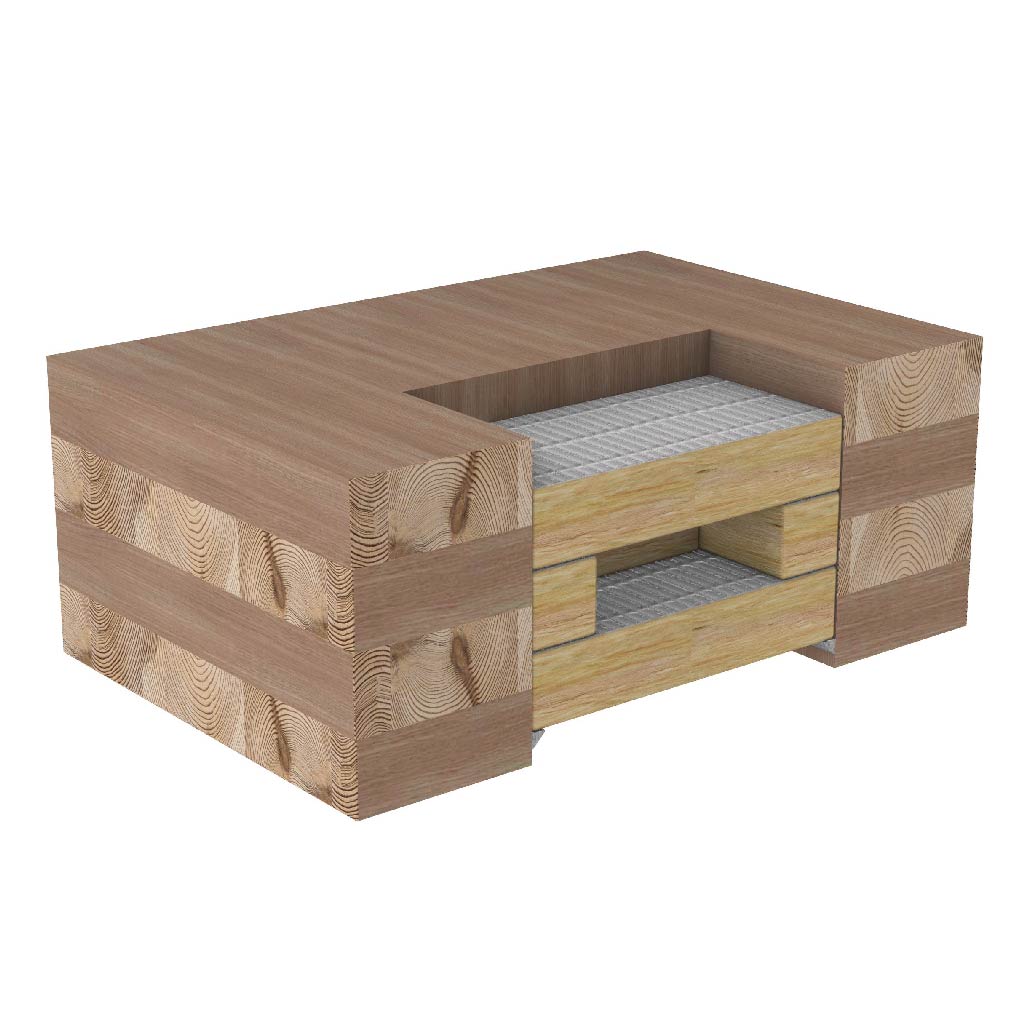

250 mm x 250 mm aperture in the CLT slab. Two layers of 252 mm x 252 mm BOSS Batt™ are to be friction-fitted into the opening, recessed 20 mm from the bottom face of the slab. A 50 mm wide x 50 mm thick strip of BOSS Batt™ is to be installed between the two BOSS Batt™ layers around the perimeter. A 5 mm x 5 mm fillet of BOSS FireMastic-300™ is applied around the edge of the batt on the underside of the slab.
