BF-3224-27
System details
- Type
- Blank Seal
- Element
- Ceiling
- Substrate
- Fire Rated Plasterboard
- Minimum Substrate Thickness
- 225 mm
- FRL / FRR
- -/60/60
- Trade
- Construction (Linear Gaps / Blank Seals)
- Service
- Other
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Max Width
- 25 mm
- Max Length
- 25 mm
- Aperture
- 25 mm
- Sealant Depth
- Top - no sealant Bottom 16 mm
Specimen size & details

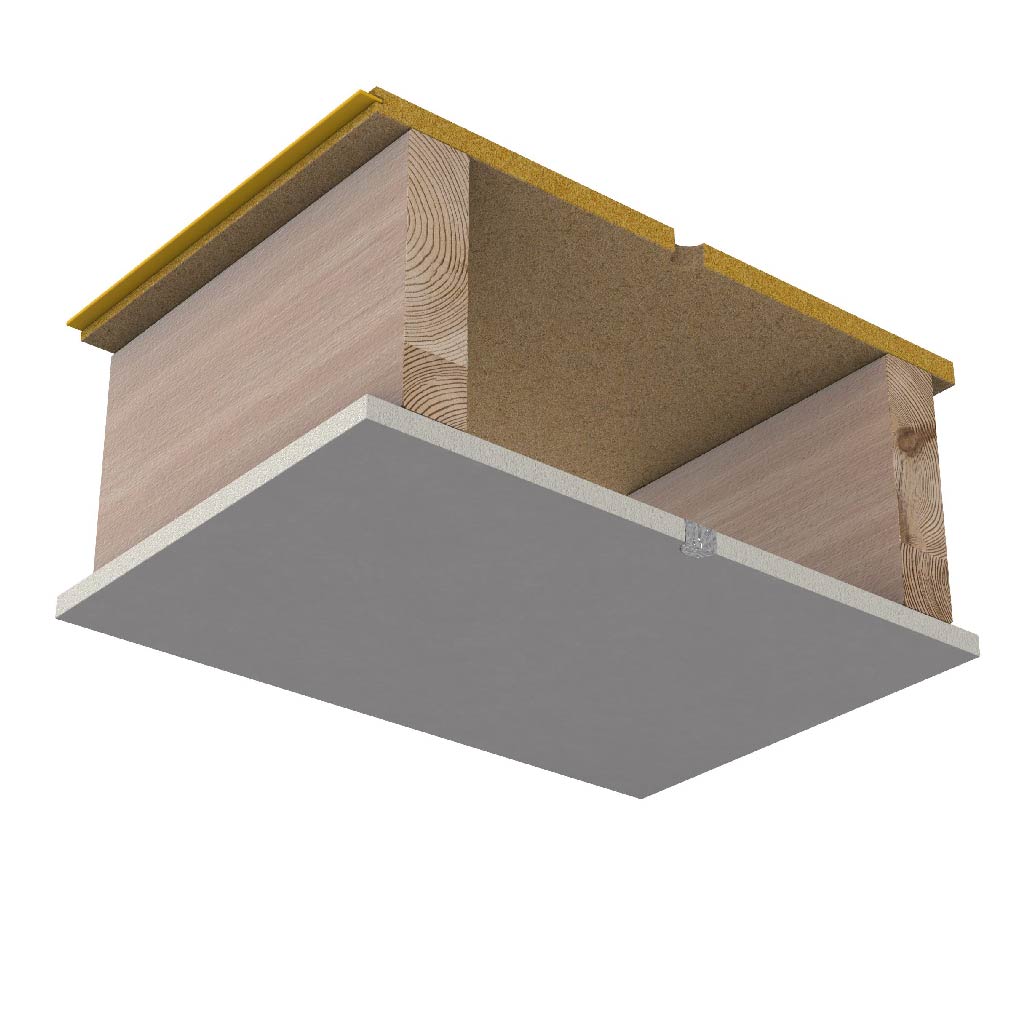

A 25 mm diameter core hole was made through the ceiling system. BOSS FireMastic-300™ sealant was installed within the plasterboard to fill the full opening to a depth of 16 mm.
