BF-3307-4
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Concrete
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/120/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- CPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 33 mm
- Max Diameter
- 33 mm
- Service Diameter Range
- 33 mm
- Aperture
- 58 mm
- Sealant Fillet
- 5 mm
Specimen size & details

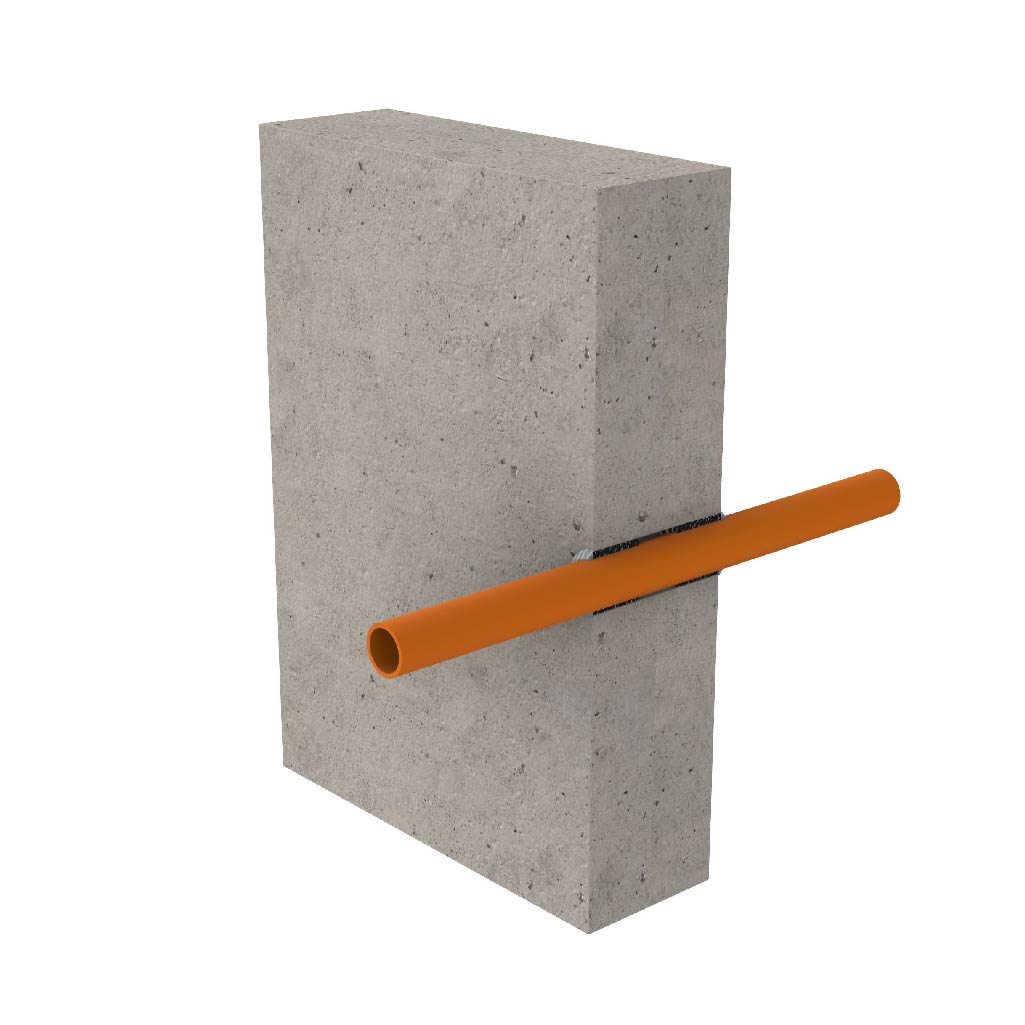

33.4 mm cPVC pipe with 2.6 mm wall thickness. 2 layers of BOSS UniWrap™ flush with the face of the separating element on both sides. BOSS FireMastic-300™ sealant applied to the resulting gap with a 5 mm x 5 mm fillet on both sides.
