BF-3416-4
System details
- Type
- Linear Joint
- Element
- Wall
- Substrate
- Concrete
- Minimum Substrate Thickness
- 250 mm
- FRL / FRR
- -/60/60
- Trade
- Construction (Linear Gaps / Blank Seals)
- Service
- Other
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Max Width
- 10 mm
- Max Length
- 10 mm
- Aperture
- 10 mm
Specimen size & details

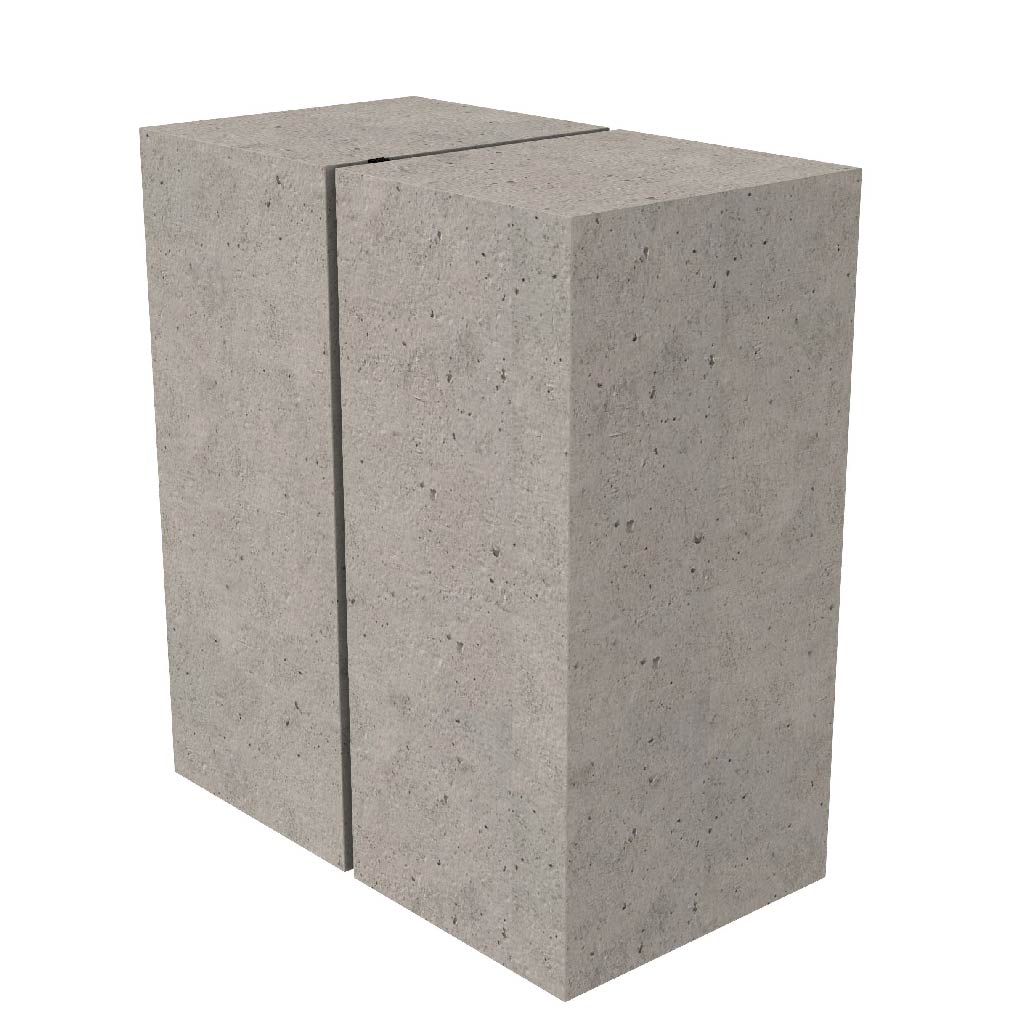

12 mm wide × 12 mm deep BOSS FireStrip-ALX™ linear gap seal friction fitted within a 10 mm wide vertical linear gap, positioned 35 mm from the exposed side of the wall system.
