BF-2035-13
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- BOSS Batt Dbl – Friction
- Minimum Substrate Thickness
- 75 mm
- FRL / FRR
- -/120/120
- Trade
- Electrical
- Service
- TPS
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Aperture
- 90 mm
- Sealant Depth
- Full depth mm
- Sealant Fillet
- 0 mm
Specimen size & details

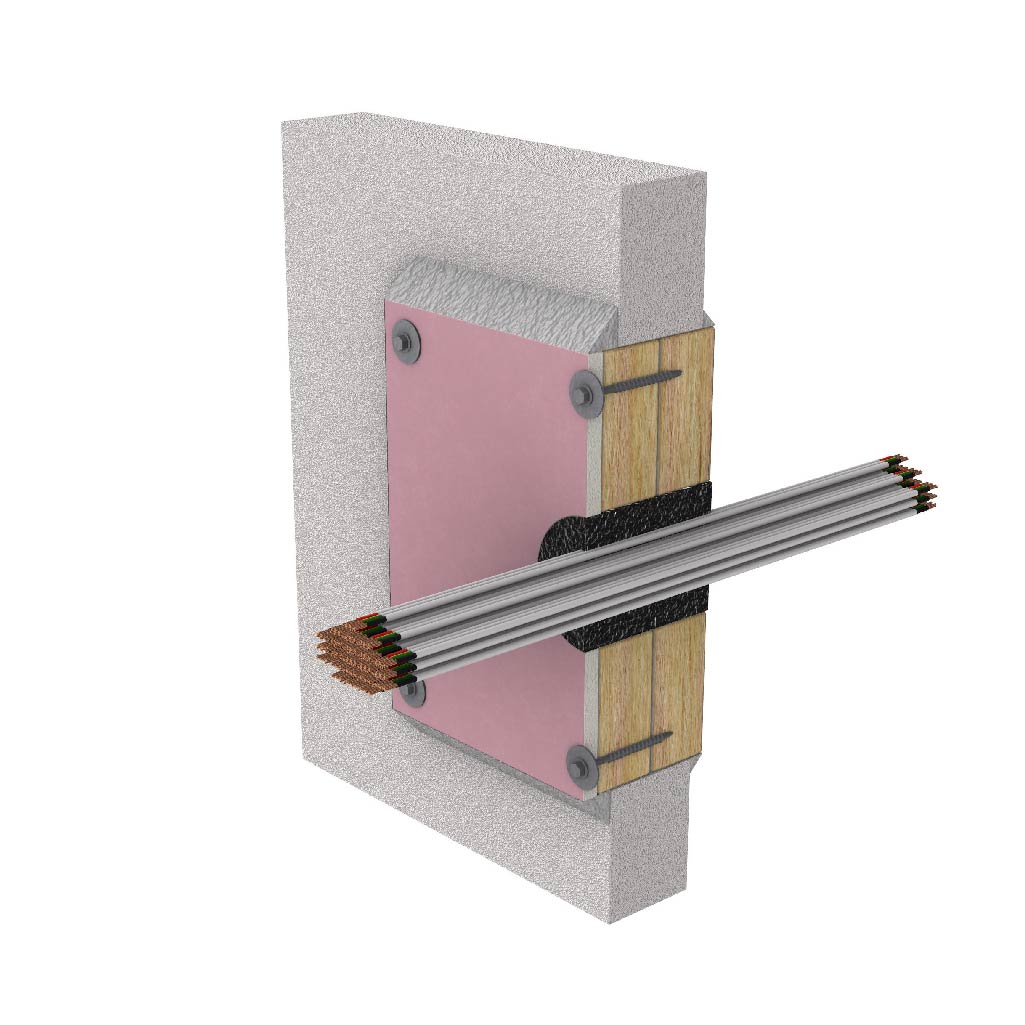

Up to 22 x 2.5 mm², 2C+E TPS Power Cables. Sealant full depth of the wall in annular gap finished flush on both sides. Wall system to include an additional build-up of 13 mm thick FR plasterboard locally around the service.
