BF-2036-6
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Speedpanel / Korok
- Minimum Substrate Thickness
- 75 mm
- FRL / FRR
- -/90/90
- Trade
- Electrical
- Service
- TPS
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Aperture
- 90 mm
- Sealant Depth
- Full depth mm
- Sealant Fillet
- 25 mm
Specimen size & details

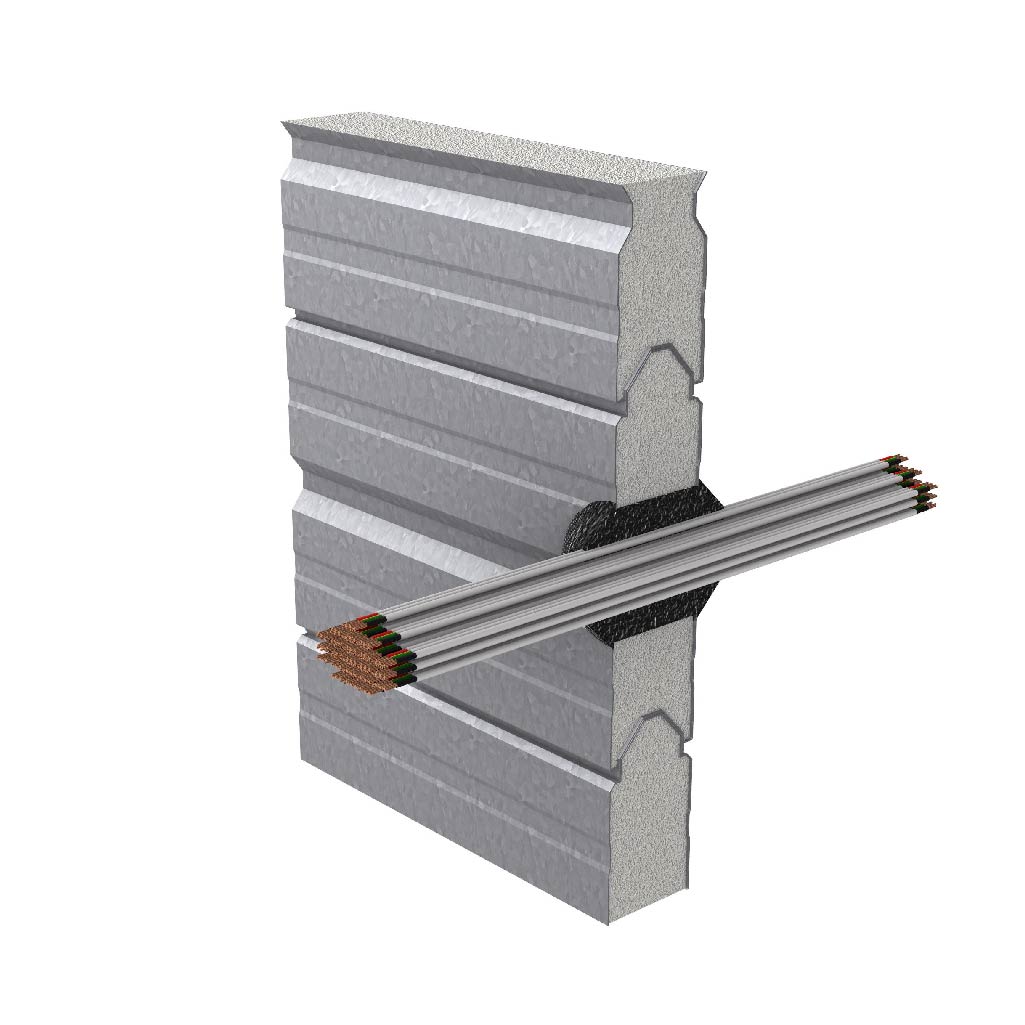

Up to 22 x 2.5 mm², 2C+E TPS Power Cables. Sealant full depth of the wall in annular gap with 25 mm x 25 mm fillet on both sides.
