BF-2037-4
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Concrete
- Minimum Substrate Thickness
- 75 mm
- FRL / FRR
- -/90/90
- Trade
- Electrical
- Service
- Conduit Incl. Cables
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Aperture
- 70 mm
- Sealant Depth
- 20 mm
- Sealant Fillet
- 0 mm
Specimen size & details

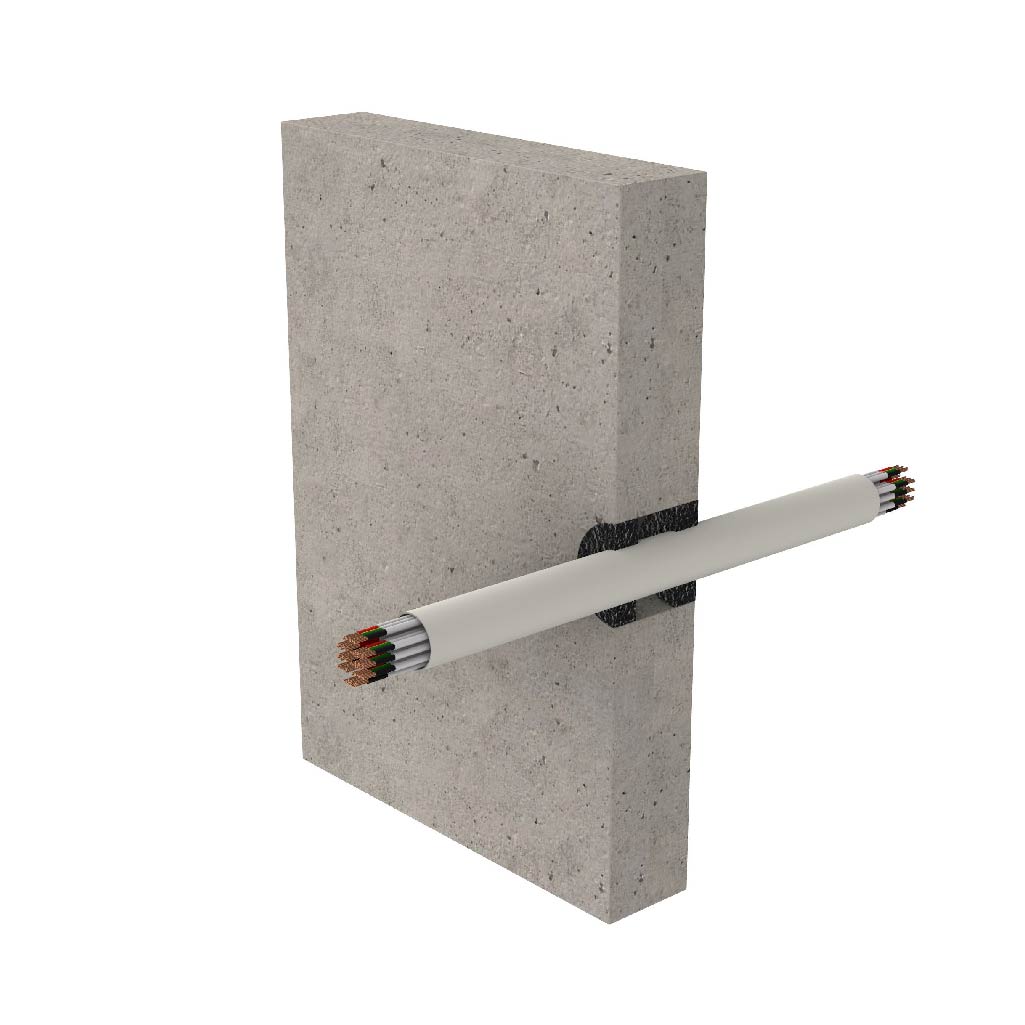

Up to 8 x 2.5 mm² 2C+E TPS Power Cables inside a uPVC conduit. Conduit up to 32 mm diameter with wall thickness up to 1.9 mm.
Sealant to depth of 20 mm in annular gap finished flush.
