BF-2110-20
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Shaftliner (w/Buildup)
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/120/120
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 32 mm
- Service Diameter Range
- Up to 32 mm
- Annular Gap
- 20 mm
- Sealant Depth
- 25 mm
- Sealant Fillet
- 20 mm

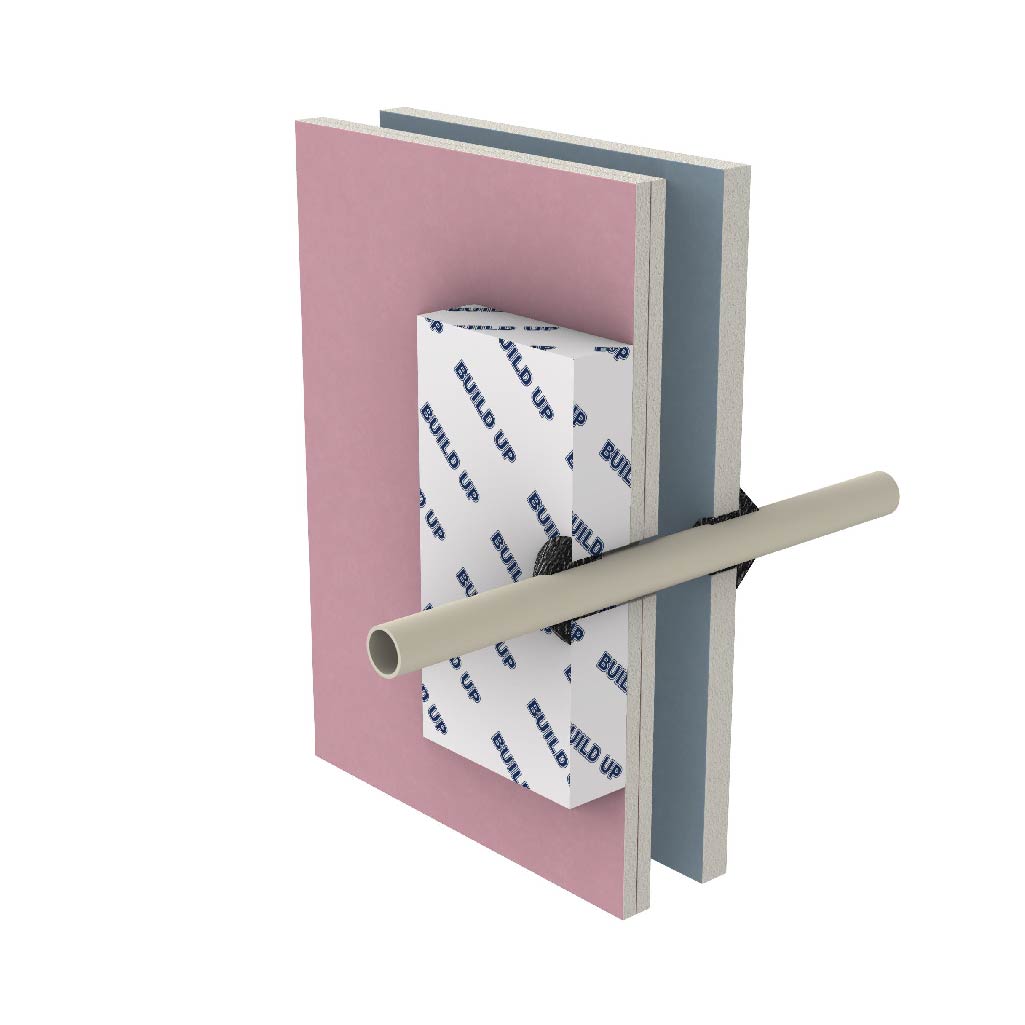

Specimen size & details
Up to 32 mm uPVC pipe. Sealant depth of plasterboard in annular gap with and a 20 mm x 20 mm fillet on both sides.
