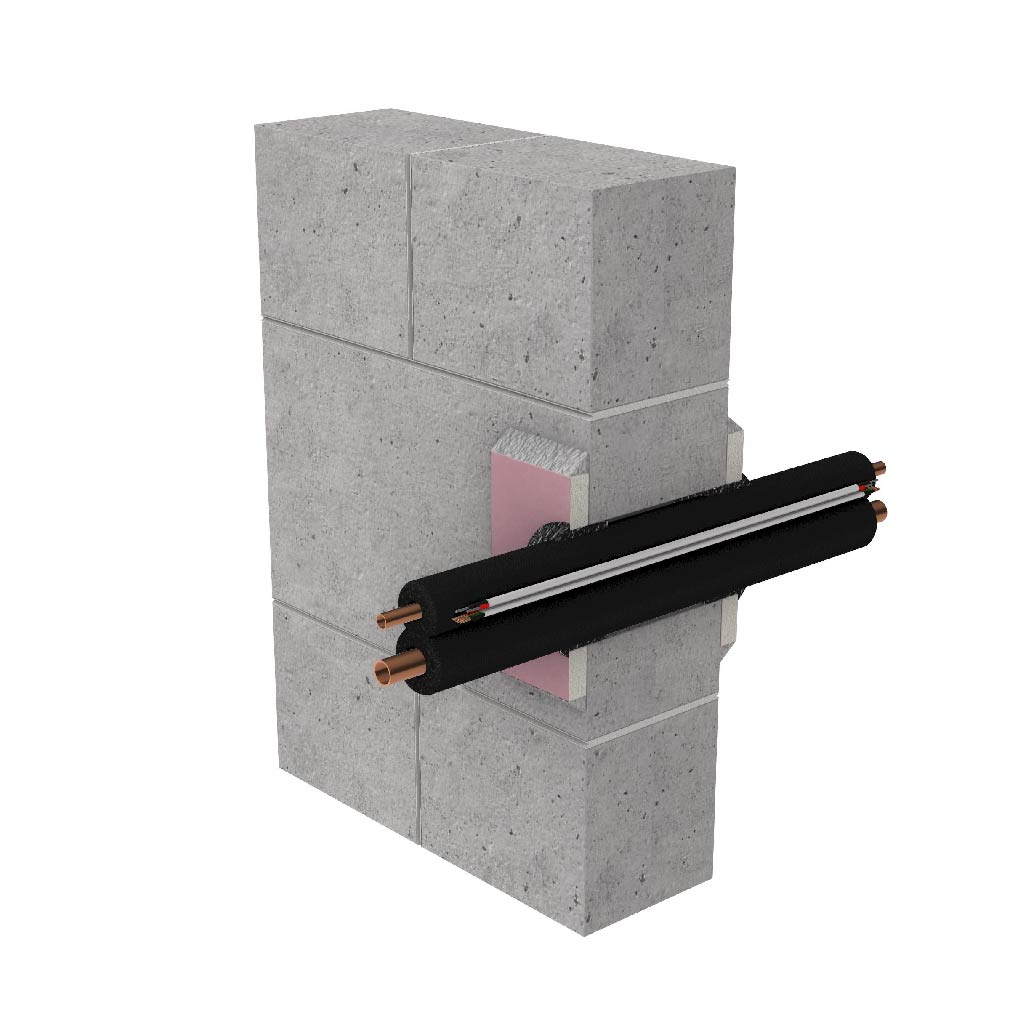

BF-2194-5
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Masonry
- Minimum Substrate Thickness
- 124 mm
- FRL / FRR
- -/90/90
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Aperture
- 80 mm
- Sealant Depth
- 32 mm
- Sealant Fillet
- 10 mm
Specimen size & details
•Paircoil:
- Up to 9.5 mm OD Copper Pipes with up to 35.5 mm OD lagging
- Up to 15.8 mm OD Copper Pipes with up to 41.1 mm OD lagging.
• Nexans Olex WK32 2015 V90 electric cables
• Electra cables 2015 EAS7501P cable V-90 RoHS
16 mm plasterboard patch (patress) 150 mm x 150 mm placed over the penetration on both sides, fixed to the wall. The edges of the plasterboard build up coated with a 16 mm x 16 mm fillet of FM300. HPE sealant in the annular gap 26 mm deep with 10 mm x 10 mm fillet.
