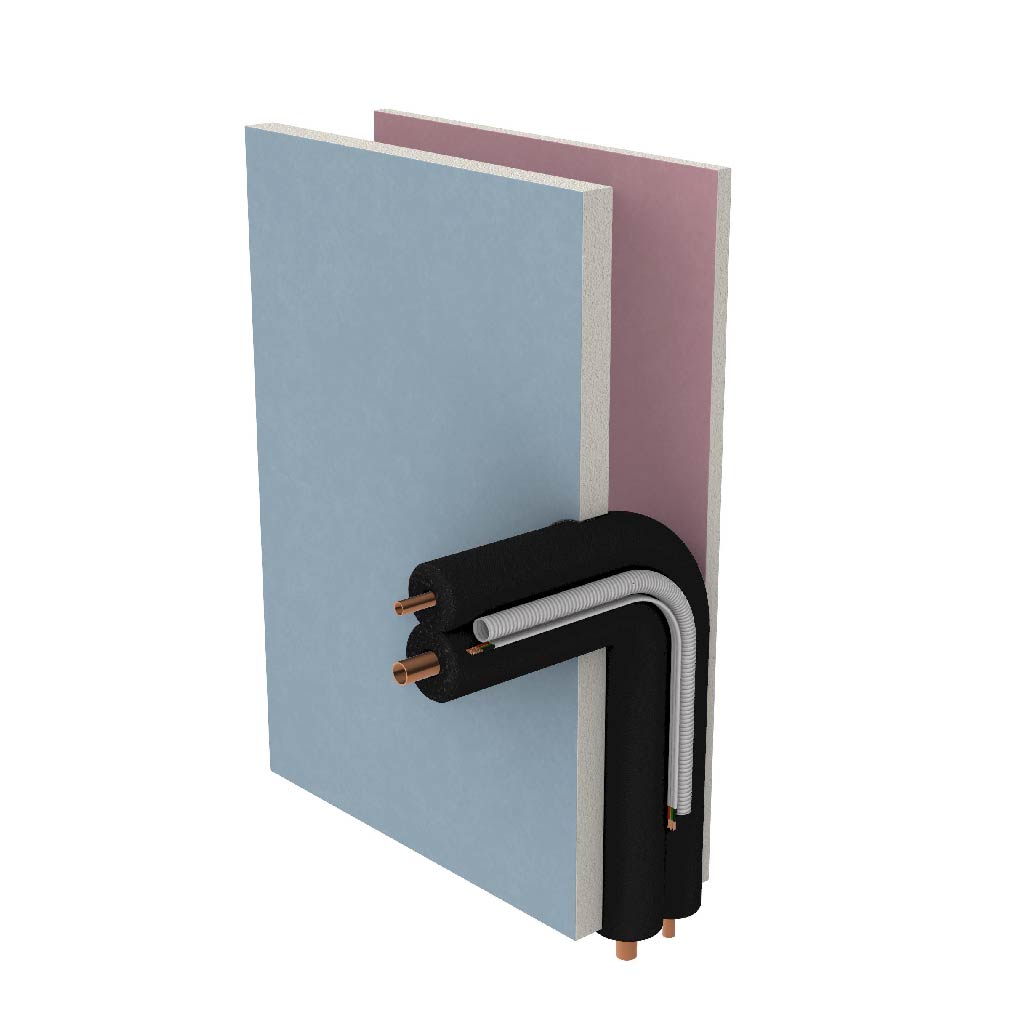

BF-2195-12
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Shaftliner
- Minimum Substrate Thickness
- 90 mm
- FRL / FRR
- -/60/60
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Aperture
- 80 mm
- Sealant Depth
- 13 mm
- Sealant Fillet
- 0 mm
Specimen size & details
1-sided installation. System is approved for installation in to the unexposed side only.
- Paircoil - Up to 6.35 mm/9.52 mm Insulated Copper Pipes with non-rated lagging,
- Up to 1.5 mm² 2C+E TPS Power Cable
- Up to 16 mm PVC flexible outlet pipe.
13 mm deep sealant in annular gap finished flush both sides, backed with a foam backing rod.
