BF-2197-13
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- BOSS Batt Dbl – Friction
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/60/60
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Aperture
- 80 mm
- Sealant Depth
- 13 mm
- Sealant Fillet
- 0 mm

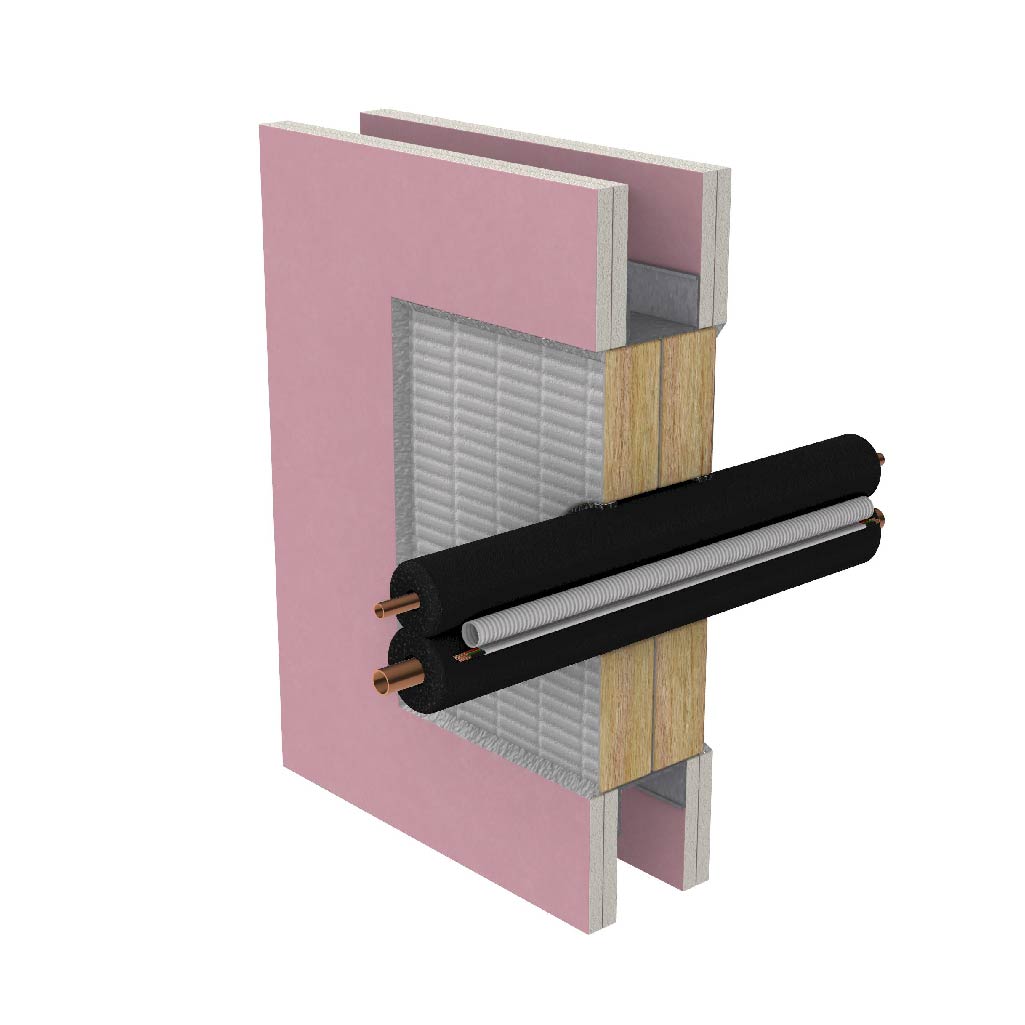

Specimen size & details
- Paircoil - Polyaire Insulated Copper Pipe,
- Up to 1.5 mm² 2C+E TPS Power Cable
- Up to 16 mm PVC flexible outlet pipe.
Sealant to a depth of 13 mm in annular gap finished flush.
