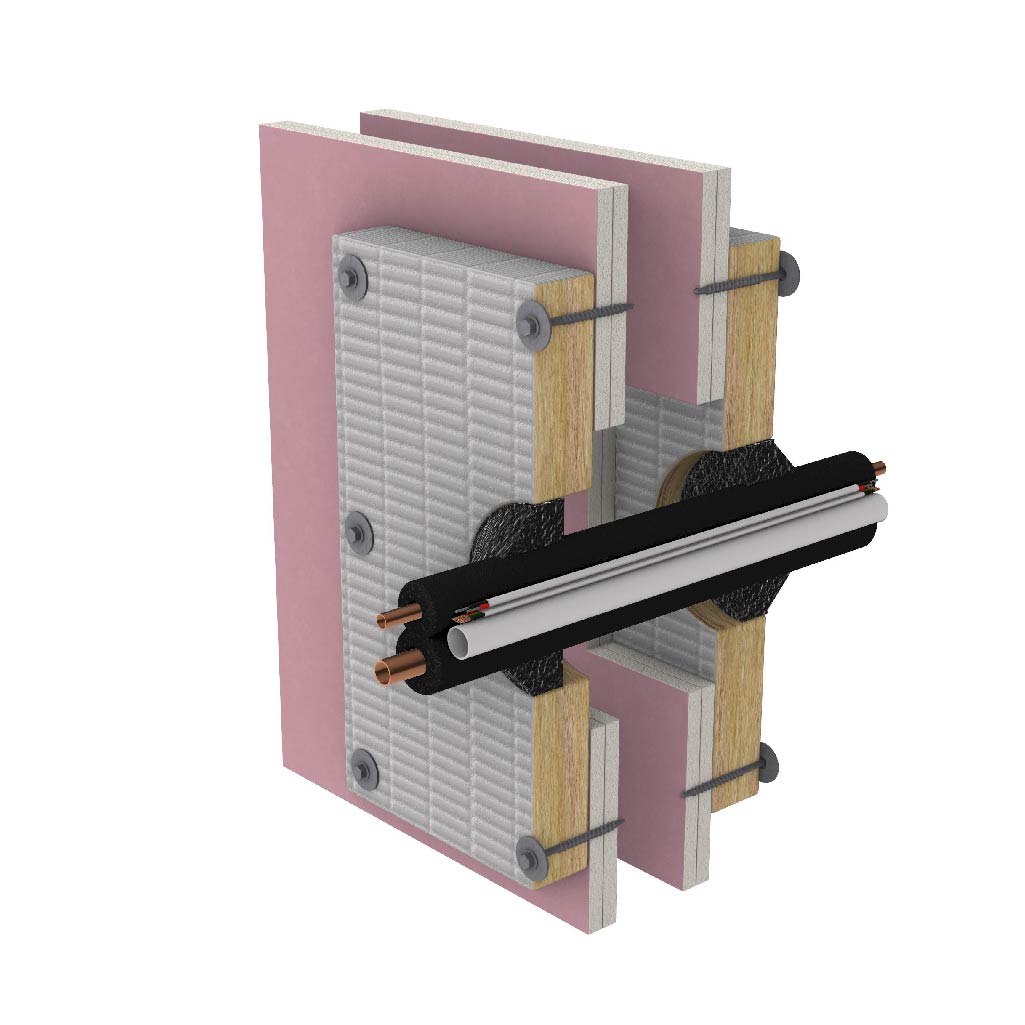

BF-2200-14
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- BOSS Batt Dbl – Pattress
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/120/120
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Aperture
- 125 mm
- Sealant Depth
- 25 mm
- Sealant Fillet
- 25 mm
Specimen size & details
- Paircoil - Up to 10 mm/16 mm Insulated Copper Pipes insulated with 13 mm thick rubber foam.
- Up to 20 mm OD PVC conduit,
- Up to 2.5 mm² 2C+E TPS Power Cable,
- Up to 1.5 mm² 2 Core Data Cable.
Sealant to a depth of 25 mm in annular gap with 25 mm x 25 mm fillet on both sides. Sealant backed with foam backing rod.
