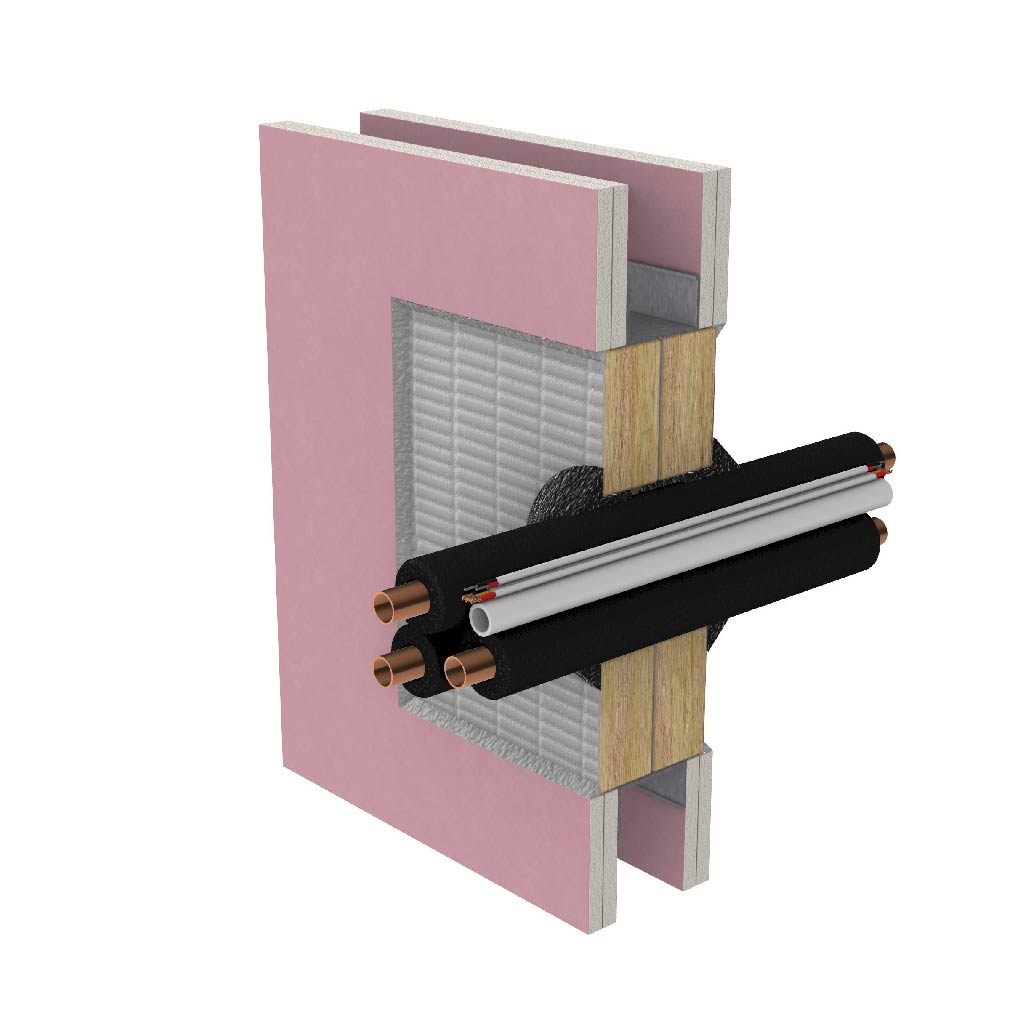

BF-2202-13
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- BOSS Batt Dbl – Friction
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/120/120
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Aperture
- Up to 125 mm
- Sealant Depth
- 25 mm
- Sealant Fillet
- 25 mm
Specimen size & details
- Up to 3 x 20 mm Copper Pipes insulated with Armaflex foamed nitrile rubber wrap
- TPS cable
- Data cable
- Up to 20 mm PVC conduit.
Sealant to a depth of 25 mm in annular gap with 25 mm x 25 mm fillet on both sides. Sealant backed with foam backing rod. .
