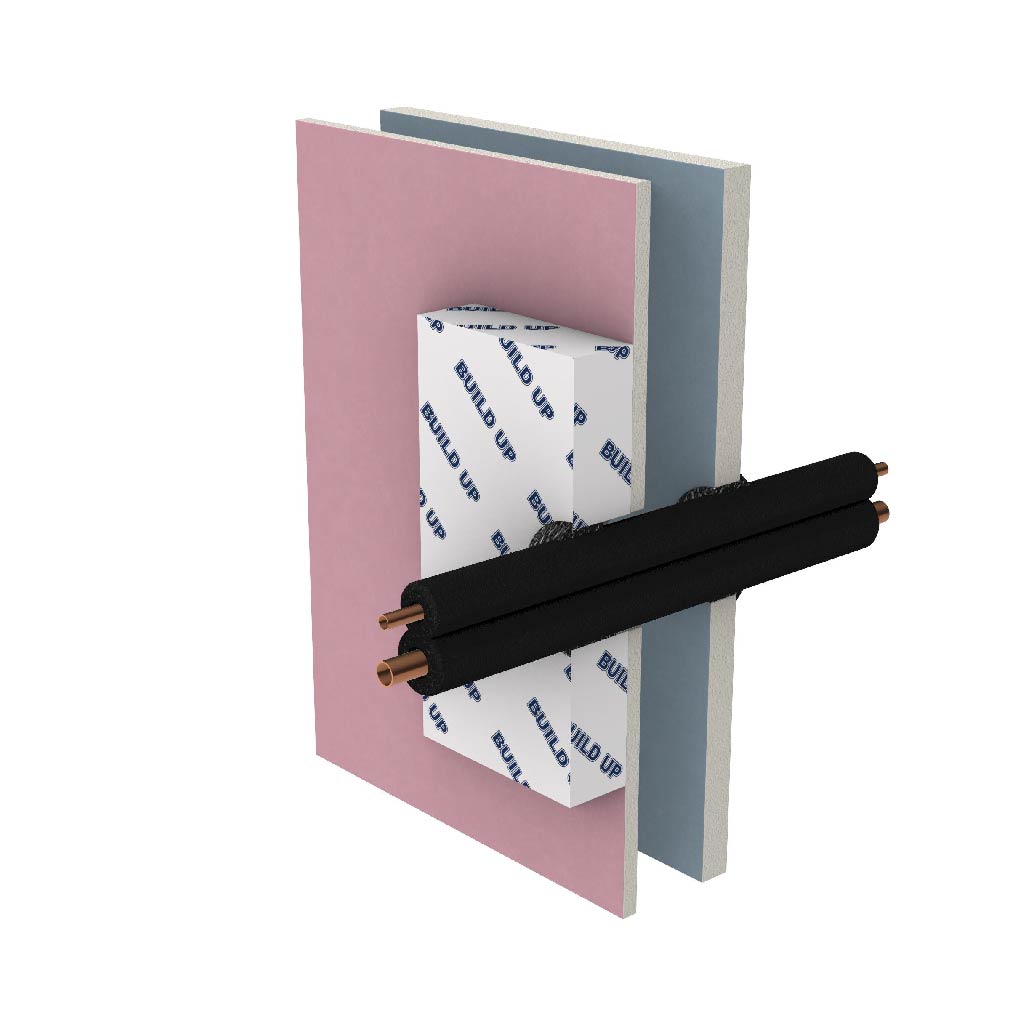

BF-2203-20
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Shaftliner (w/Buildup)
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- -/90/90
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Aperture
- 80 mm
- Sealant Depth
- 26 mm
- Sealant Fillet
- 10 mm
Specimen size & details
- Up to 9.5 mm OD Copper Pipes with up to 35.5 mm OD lagging
- Up to 15.8 mm OD Copper Pipes with up to 41.1 mm OD lagging,
HPE in the annular gap to a depth of 26 mm with a 10 mm x 10 mm surface fillet.
