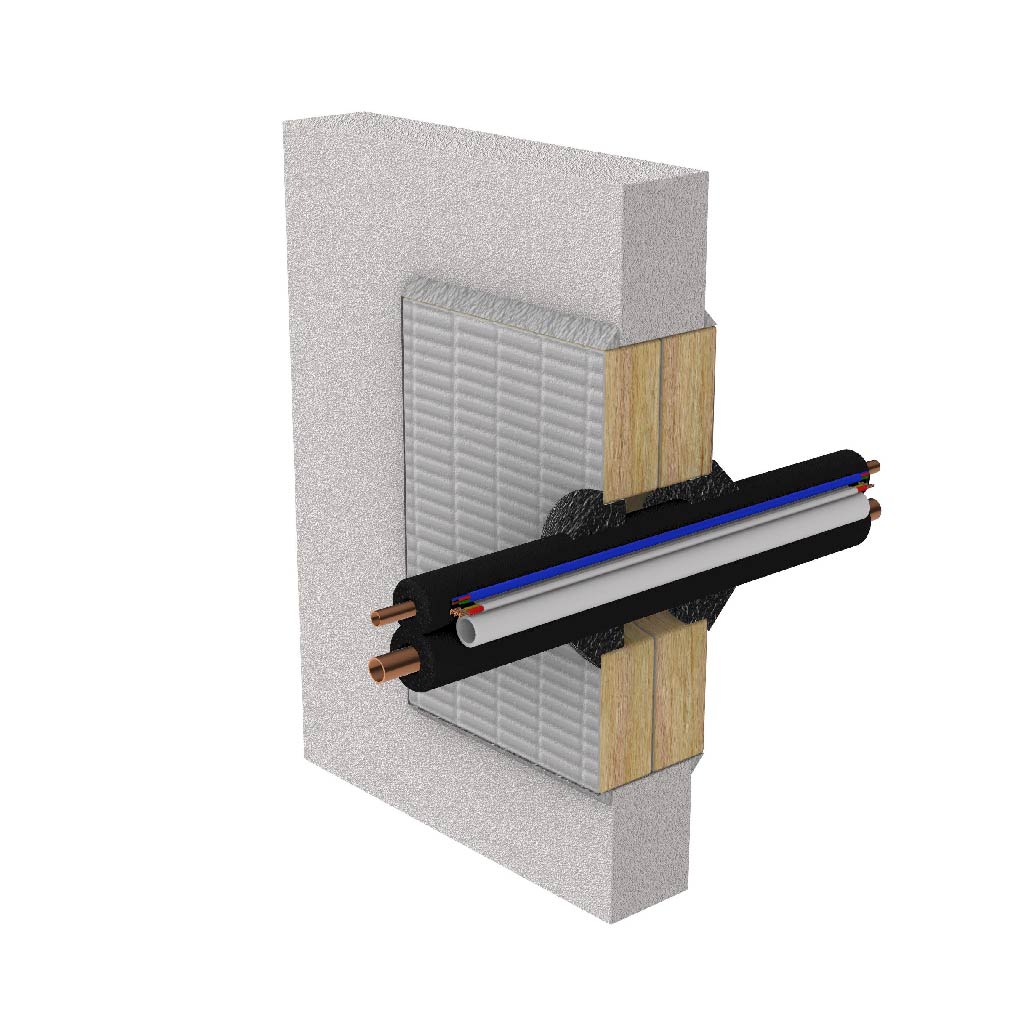

BF-2206-13
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- BOSS Batt Dbl – Friction
- Minimum Substrate Thickness
- 75 mm
- FRL / FRR
- -/120/120
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Aperture
- 100 mm
- Sealant Depth
- 20 mm
- Sealant Fillet
- 25 mm
Specimen size & details
- Up to 1 x 3/8" x 5/8" Paircoil with 13 mm thick FR lagging - 0.8 mm / 1.0 mm thick
- Up to 1 x 2.5 mm² 3C+E TPS Power Cable
- Up to 1 x Cat6 Cable
- Up to 1 x 20 mm uPVC condensate pipe (WT 1.4 mm).
Sealant to a depth of 20 mm in annular gap and a 25 mm x 25 mm fillet on both sides.
