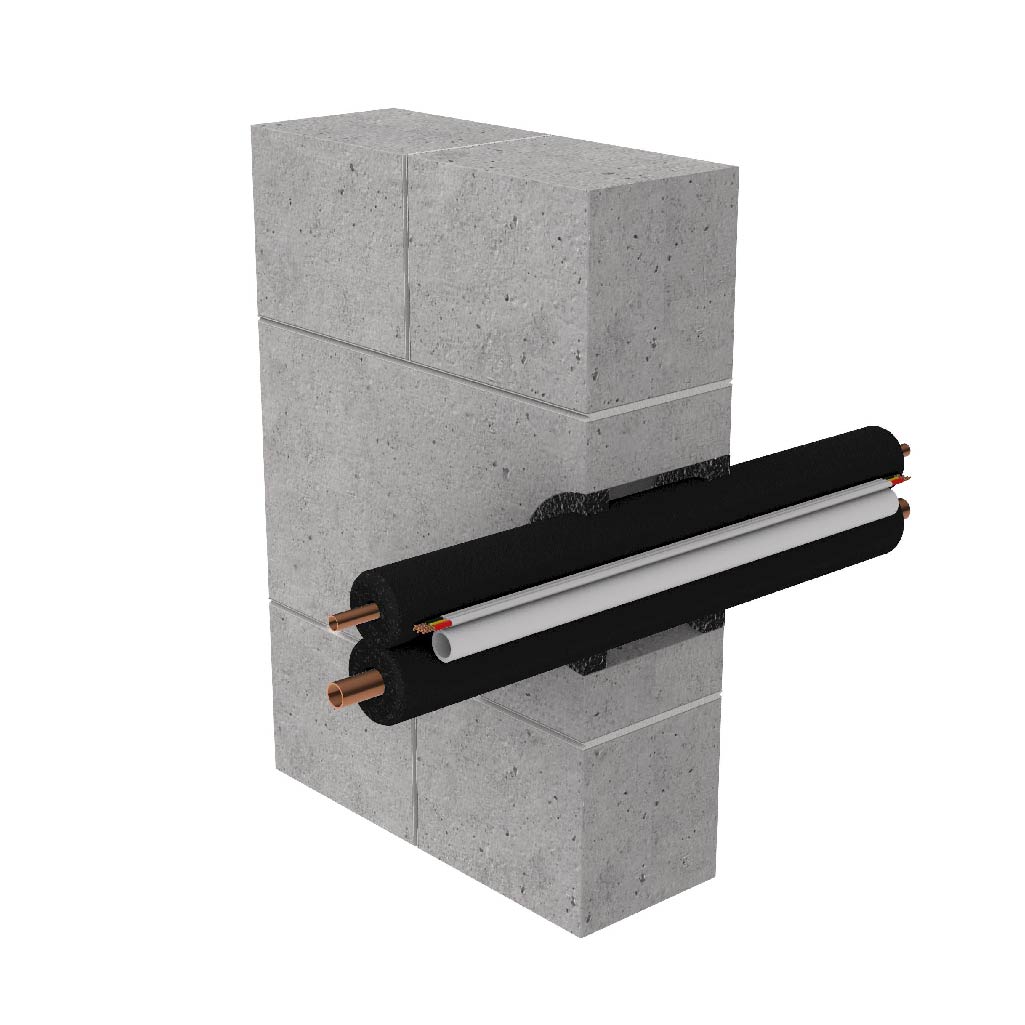

BF-2210-5
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Masonry
- Minimum Substrate Thickness
- 130 mm
- FRL / FRR
- -/90/90
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 90
Fire-stopping products
Application dimensions
- Aperture
- 121 mm
- Sealant Depth
- 20 mm
- Sealant Fillet
- 0 mm
Specimen size & details
- Up to 1 x 3/8" x 3/4" Paircoil with 19 mm thick FR lagging
- Up to 1 x 2.5 mm² 3C+E TPS Power Cable
- Up to 1 x 20 mm uPVC condensate pipe (WT 1.8 mm).
- Instrolex control cable
Sealant to depth of 20 mm in annular gap both sides, finished flush.
