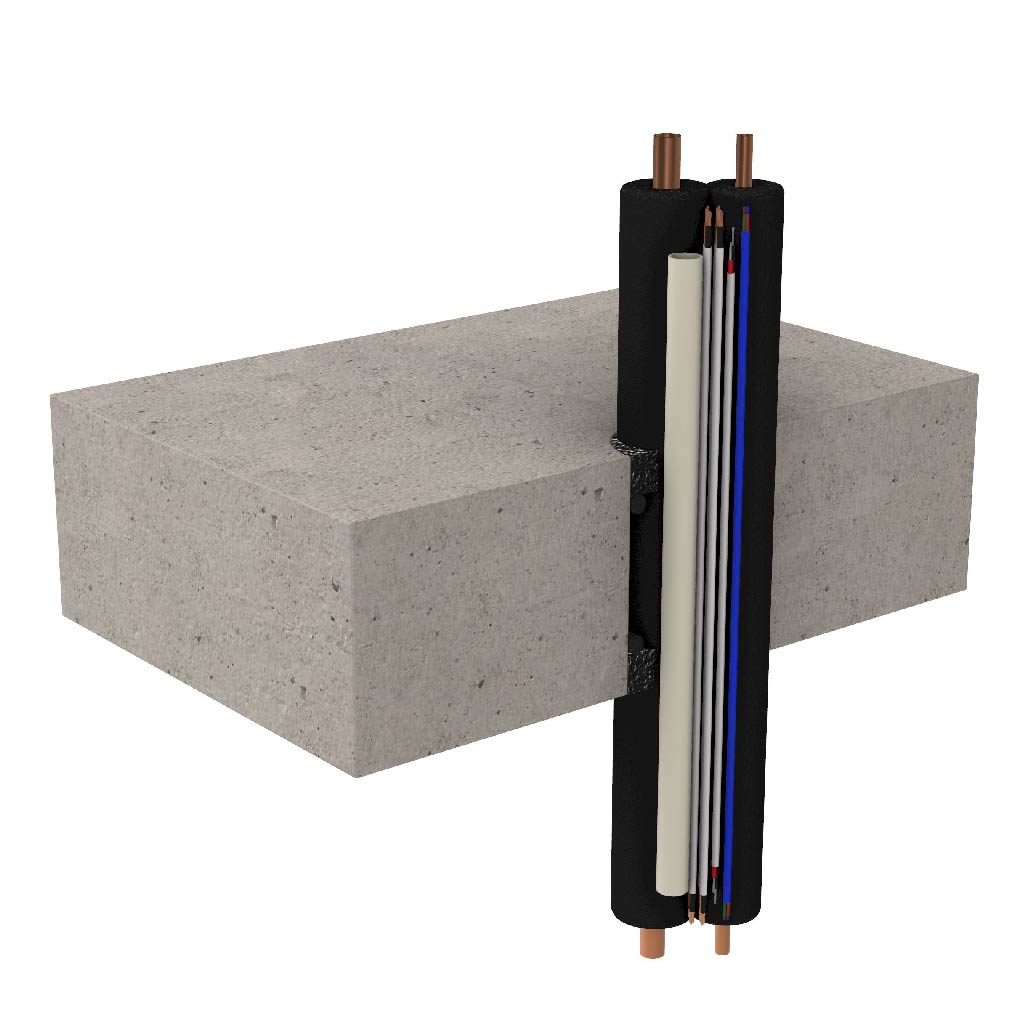

BF-2214-25
System details
- Type
- Service Penetration
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 150 mm
- FRL / FRR
- -/240/240
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 240
Fire-stopping products
Application dimensions
- Aperture
- 100 mm
- Sealant Depth
- 25 mm
- Sealant Fillet
- 0 mm
Specimen size & details
- Up to 1 x 3/8" x 3/4" Paircoil with 19 mm thick lagging - 1.4 mm / 2.8 mm thick
- Up to 1 x 2.5mm² 3C+E TPS Power Cable
- Up to 1 x Cat6 Cable
- Up to 1 x instrolex control cable
- Up to 1 x 2.5mm² 2C+E TPS Power Cable
- Up to 1 x 20mm uPVC condensate pipe (WT 1.5mm).
Sealant to depth of 25 mm in annular gap to backing rod finished flush both sides.
