BF-2958-12
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Shaftliner
- Minimum Substrate Thickness
- 118 mm
- FRL / FRR
- -/60/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- Plastic Pipes, UPVC
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 80 mm
- Service Diameter Range
- Up to 80 mm
- Annular Gap
- 5 mm
- Sealant Depth
- Depth of collar mm
Specimen size & details

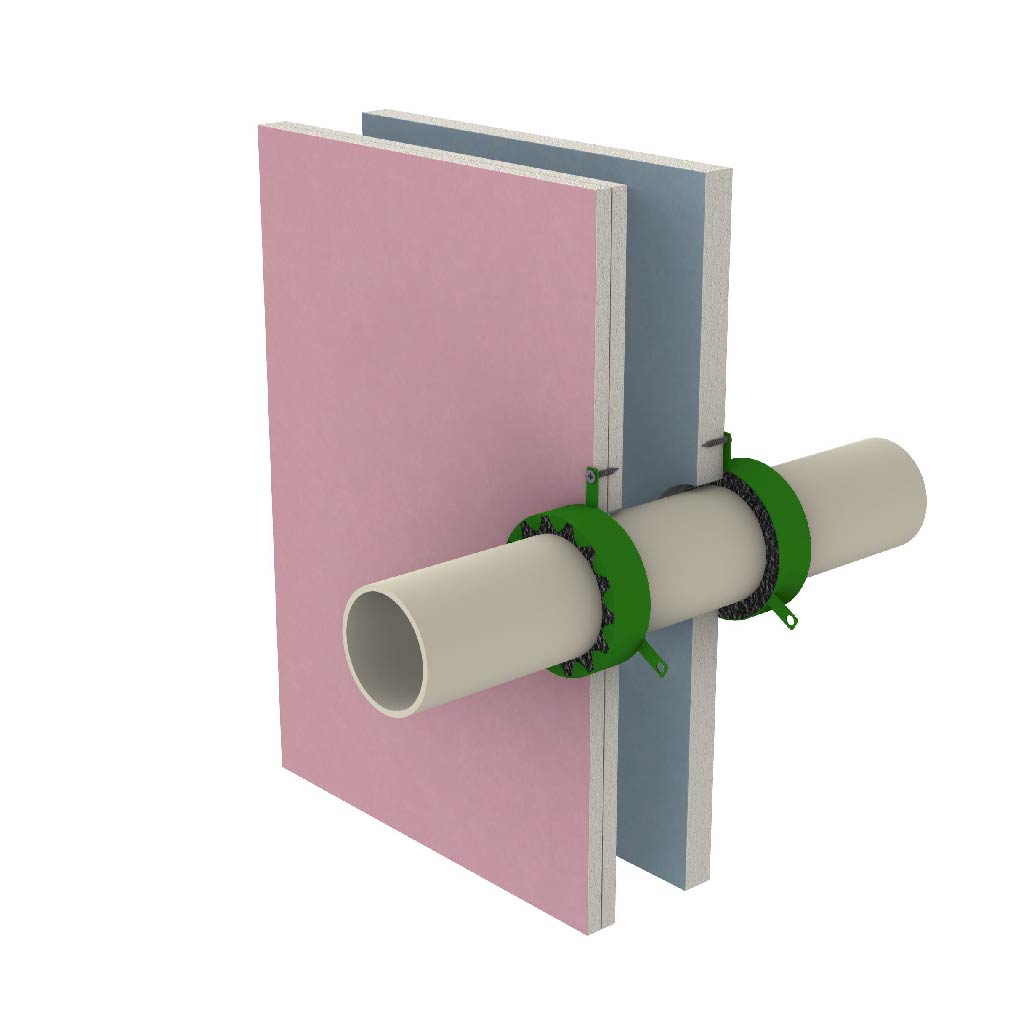

Up to 80 mm uPVC pipe with 6.4 mm wall thickness. The system includes a 80 mm BOSS MaxiCollar™ installed to both sides. Sealant installed in the gap between the collar and pipe to full depth. Maximum 5 mm annular gap through substrate. Installed in min 118 mm thick walls.
